LOVE PUMPS NEXT STEP IN FLEXIBILITY AND VALUE
Jabsco has a proven 50 year heritage in Lobe Pump manufacturing. Jabsco branded lobe pumps are taking the next step in flexibility and value. The Hy~Line+ (HP Series) and Ultra~line (UL Series) range of lobe pumps replace the Hy~Line, Ultima and 24 Series lobe pumps offering the combined strengths and experience on one key platform.JABSCO LOBE PUMP RANGE

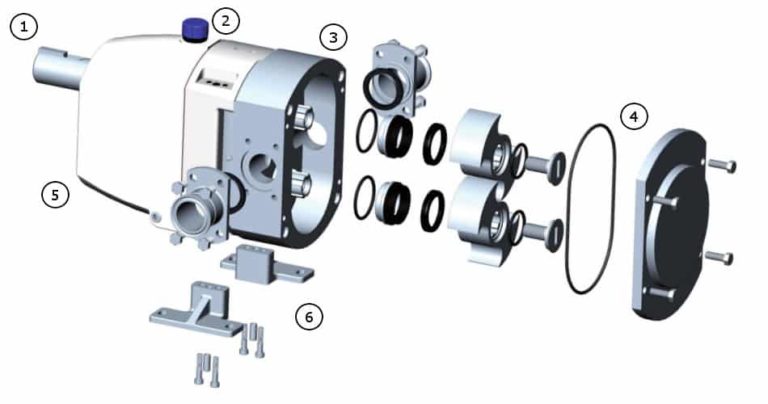

Product Description: High flow, high-pressure Positive displacement non-contacting rotary lobe pump. Applications: Industrial, food and beverage, bio-pharmaceutical processing; decanting, transfer, filling, spraying. Power Source: Shaft-coupled electric motor drive. Materials of construction: 316L wetted parts with epoxy-coated aluminium gear cover; choice of seals including C/SS, SiC/SiC, single or double with flush; 304 stainless steel mounting feet with synthetic elastomer sealing joints available in Nitrile, EPDM, Viton and PTFE.
- Epoxy-coated bearing housing and gear cover; available in stainless steel for sizes 4-6
- Nitrile, Viton and PTFE Wetted elastomers to FDA, 3A and EN1935:2004; EPDM to USP Class VI
- Front loading seals and rotors as standard across the range
- HP series end cover supports relief valves and end covers
- Pump modules, feet and port kits are sold separately. 1 pump 96 possible variants. Hopper inlet Option
- 304 stainless steel feet as standard on sizes 4-7
JABSCO FEATURES

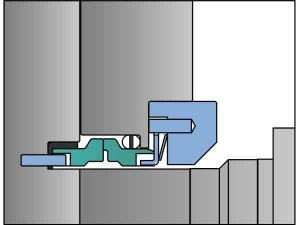

Single mechanical seal
The standard offering for compatible fluids

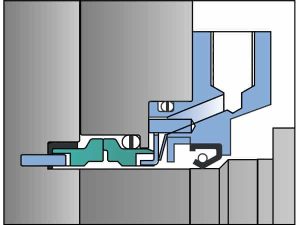

Single mechanical seal with flush
For fluids with the potential to leave a residue; ATEX applications

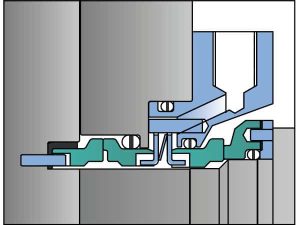

Double mechanical seal with flush
For fluids that must not escape to the atmosphere

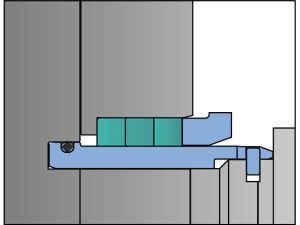

Packed Gland Seal
Low-cost alternative to handle fluids with the potential to leave residue

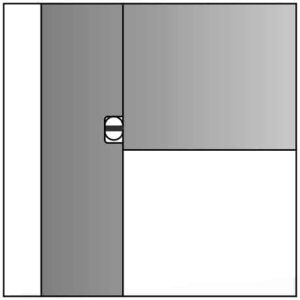

Hygienic end cover joint

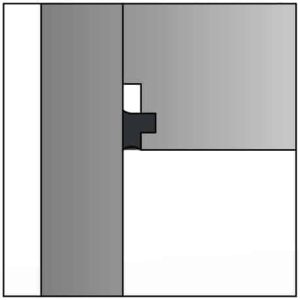

Ultra-hygienic end cover joint
| Seal Type | Primary Seal Face Options | 2nd Seal Face | Available On | ||
|---|---|---|---|---|---|
| Single Seal Mechanical | C/SS | C/SiC | SiC/SiC | – | Size 3 to 7 |
| Single Seal Mechanical (Flush Option) | C/SiC | SiC/SiC | C/SiC | Size 3 to 7 | |
| Double Mechanical Seal (Integral Flush) | C/SiC | SiC/SiC | C/SiC | Size 4 to 7 | |
| 3 Ring Packed Gland | – | – | – | – | Size 4 & 5 |
| Configuration | Realisation |
|---|---|
| Horizontal Ports | Apply Horizontal Foot Kit |
| Top Shaft Drive | Comes as Standard |
| Bottom Shaft Drive | Rotate Gear Cover 180°, Swap Filler Cap and Sight Glass |
| Vertical Ports | Apply Vertical Foot Kit |
| Left Shaft Drive | Swap Filler Cap and Sight Glass |
| Right Shaft Drive | Rotate Gear Cover 180°, Swap Filler Cap and Sight Glass |

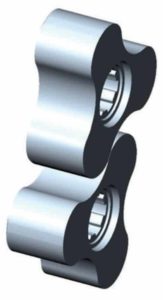

Tri-lobe and scimitar rotor options on one pump platform

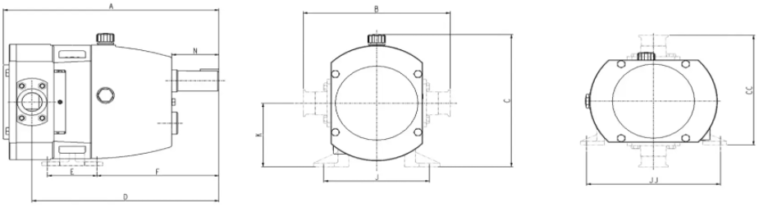

DIMENSIONAL DRAWING & KEY INSTALLATION DATA
| Pump Size | A | B | C | CC | D | E | F | J | JJ | K | N | Max Speed | Max Pressure | Flow 100 RPM | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 274 | 223 | 212 | 182 | 231 | 72 | 142 | 150 | 200 | 99 | 42 | 1000 RPM | 15 BAR | 12.3 LTR | 18 KG |
| 44 | 290 | 223 | 212 | 182 | 241 | 72 | 142 | 150 | 200 | 99 | 42 | 1000 RPM | 8 BAR | 20.4 LTR | 20 KG |
| 52 | 368 | 249 | 250 | 208 | 319 | 84 | 208 | 179 | 228 | 120 | 80 | 1000 RPM | 15 BAR | 26.5 LTR | 32 KG |
| 54 | 396 | 259 | 250 | 213 | 338 | 84 | 208 | 179 | 228 | 120 | 80 | 1000 RPM | 8 BAR | 45.5 LTR | 35 KG |
| 62 | 433 | 288 | 329 | 249 | 370 | 122 | 224 | 200 | 294 | 174 | 79 | 720 RPM | 15 BAR | 64 LTR | 61 KG |
| 64 | 462 | 302 | 329 | 256 | 379 | 122 | 224 | 200 | 294 | 174 | 79 | 720 RPM | 8 BAR | 95 LTR | 65 KG |
| 72 | 489 | 380 | 381 | 324 | 414 | 210 | 178 | 288 | 342 | 186 | 89 | 680 RPM | 15 BAR | 123 LTR | 125 KG |
| 74 | 529 | 380 | 381 | 324 | 439 | 210 | 178 | 288 | 342 | 186 | 89 | 600 RPM | 8 BAR | 205 LTR | 145 KG |
| 76 | 576 | 411 | 381 | 340 | 456 | 210 | 178 | 288 | 342 | 186 | 89 | 600 RPM | 5 BAR | 301 LTR | 165 KG |
| 84 | 807 | 470 | 484 | 390 | 658 | 268 | 288 | 345 | 440 | 249 | 99 | 600 RPM | 10 BAR | 366 LTR | 370 KG |
