Wilden
Wilden is a brand that specialises in the design and manufacture of air-operated double diaphragm pumps. Since 1955, the company has never ceased improving its AOD technology to provide the best equipment to every industry across the globe. Each Wilden pump is engineered to deliver a wide range of flow rates and outlet pressure levels, for greater versatility.
Meticulously designed pump configurations guarantee total pumped media containment, while optimized internal liquid paths reduce friction to maximize output and efficiency.
Features & Benefits
- Self-priming, submersible, safe to dry run, sealless
- Reliable and energy-efficient
- Wide chemical compatibility
- Available in metallic and non-metallic versions
Available Options
We customise pumps according to your specific application. Get in touch with us to discuss your options.
- Pump material options
- Diaphragm material
- Elastomer options
- Specialty pumps
- Spare parts
- Accessories
- ATEX models
Key Specifications
- 22 models – metallic and non-metallic
- Max flow – 63 m3/h
- Max inlet pressure – 8.6 bar
- Max solids – 60.3 mm
- Max suction lift – 9.8 m (wet)
Principle of Operation
Wilden diaphragm pumps are air operated and are mostly double diaphragms. Air drives the pump to work. Compressed air enters the air inlet chamber and the air pressure moves the shaft either to the left or right. When the shaft moves to the right, it puts pressure on the right diaphragm, placing it to its discharge stroke. Meanwhile, the left diaphragm is pulled towards the centre, creating a vacuum in the left chamber, and the suction of fluid begins. Meanwhile, as soon as the right chamber reaches its maximum discharge stroke, the shaft begins to move to the left and shifts the air pressure to the left diaphragm. The fluid that entered during the left diaphragm’s suction stroke will now be pushed past the discharge valve. The left diaphragm is not positioned to its suction stroke. This makes up a full AODD pumping cycle.
Applications
Common applications include:
Oil & Gas
- Crude oil transfer
- Waste transfer
- Lube oil transfer
- Glycol feed
- Emergency dewatering
Chemical
- Acid transfer
- Polymer transfer
- Chemical dosing
- Low-solvent coating
- Solvent transfer
General Industry
- Crude oil transfer
- Waste transfer
- Lube oil transfer
- Glycol feed
- Emergency dewatering
Mining
- Dewatering
- Waste transfer
- Fuel transfer
- Filtration
- Dosing
Others
- Paint and coating
- Marine and Military
- Ceramic
- Wastewater
Range
Explore Wilden’s diverse pump portfolio and experience the efficiency and reliability that comes with their advanced internal liquid path design.

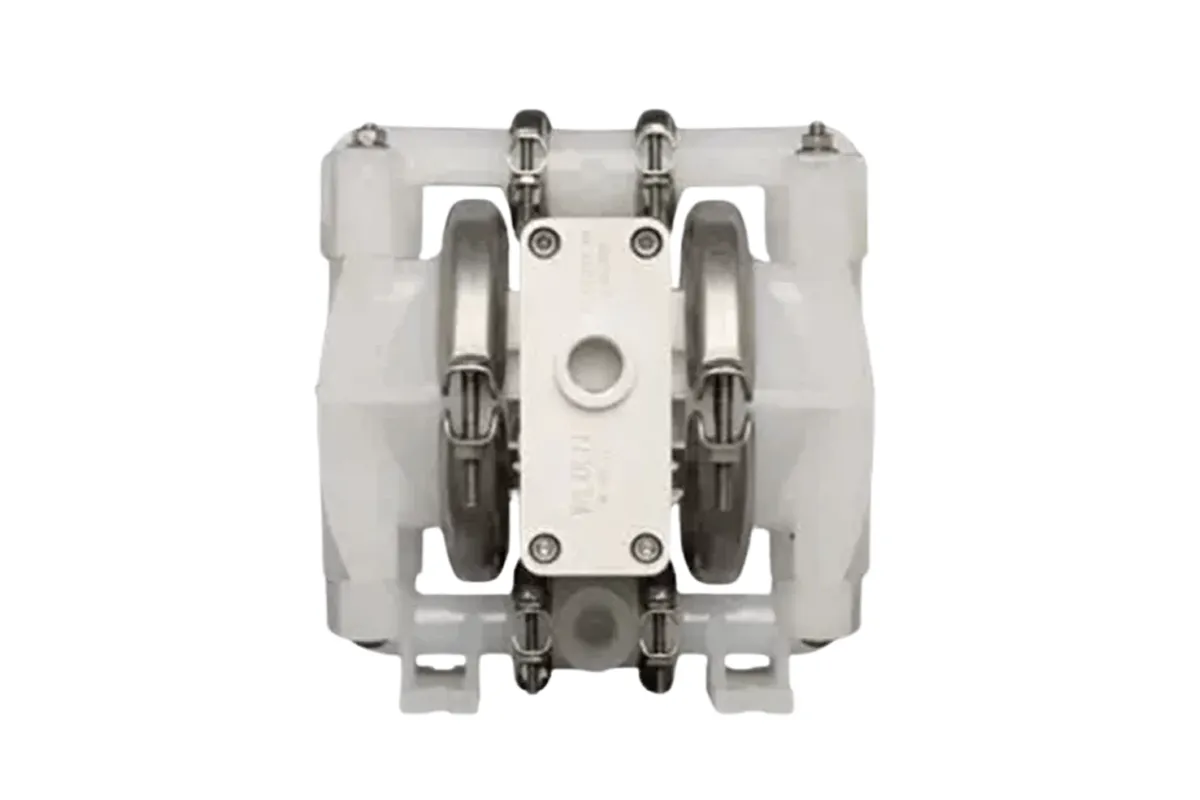

- P1

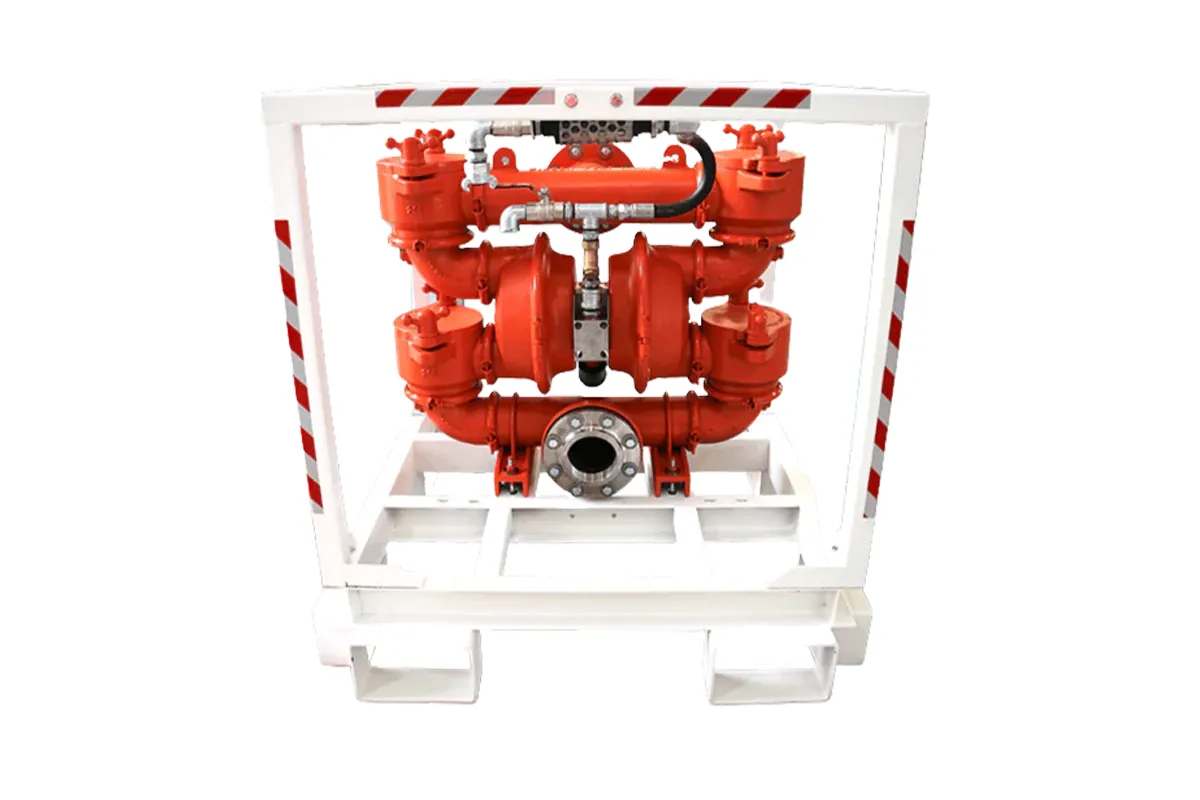

- T20

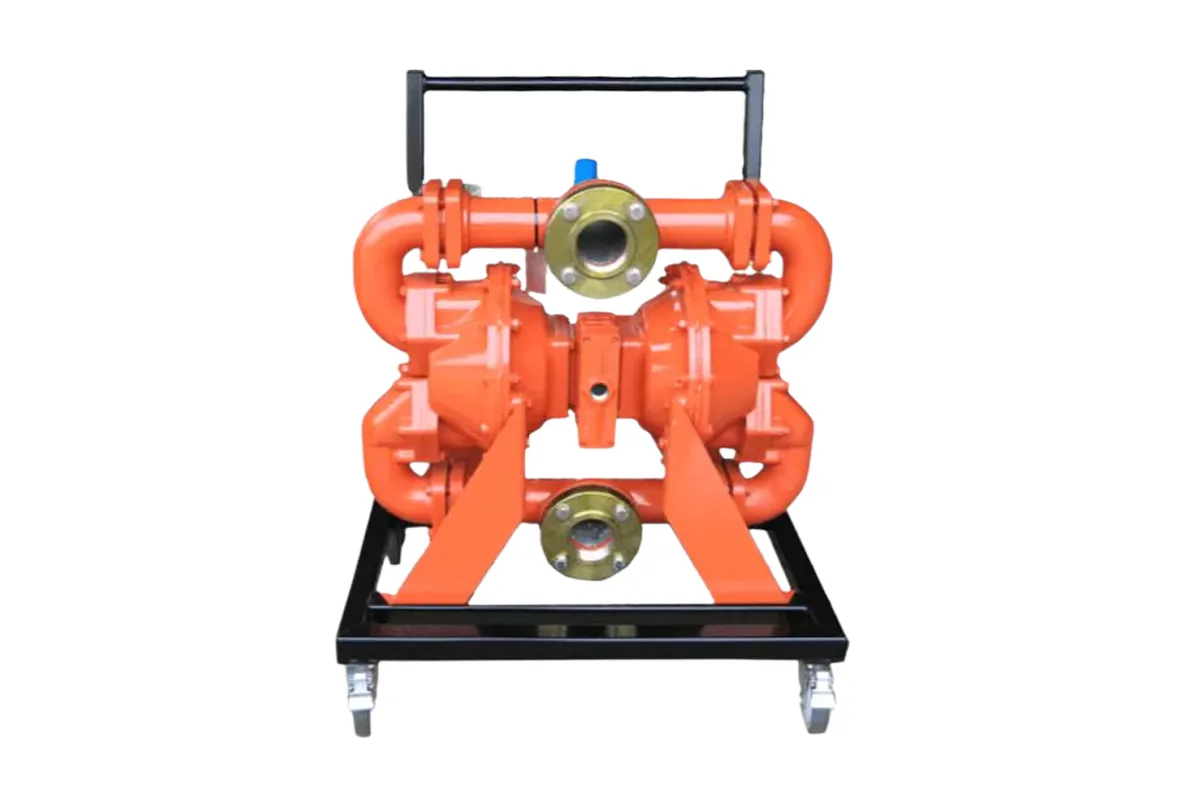

- PX1510

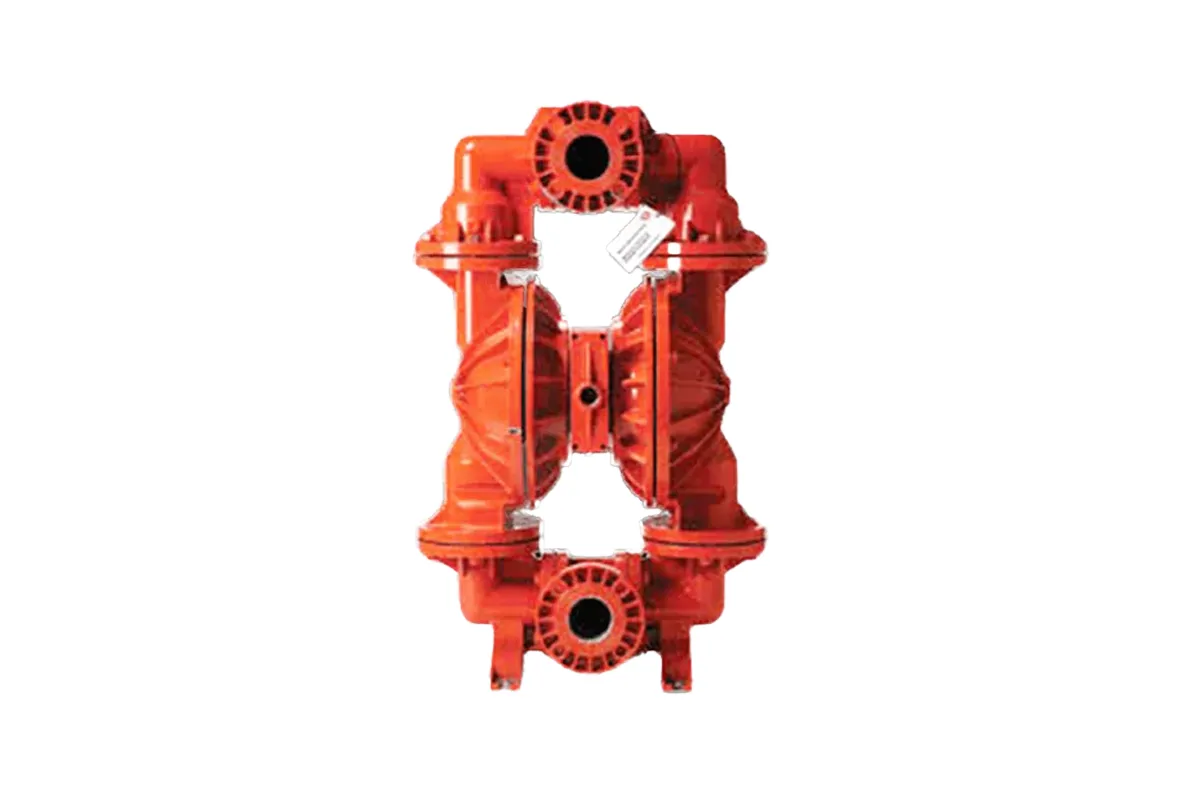

- PX1500

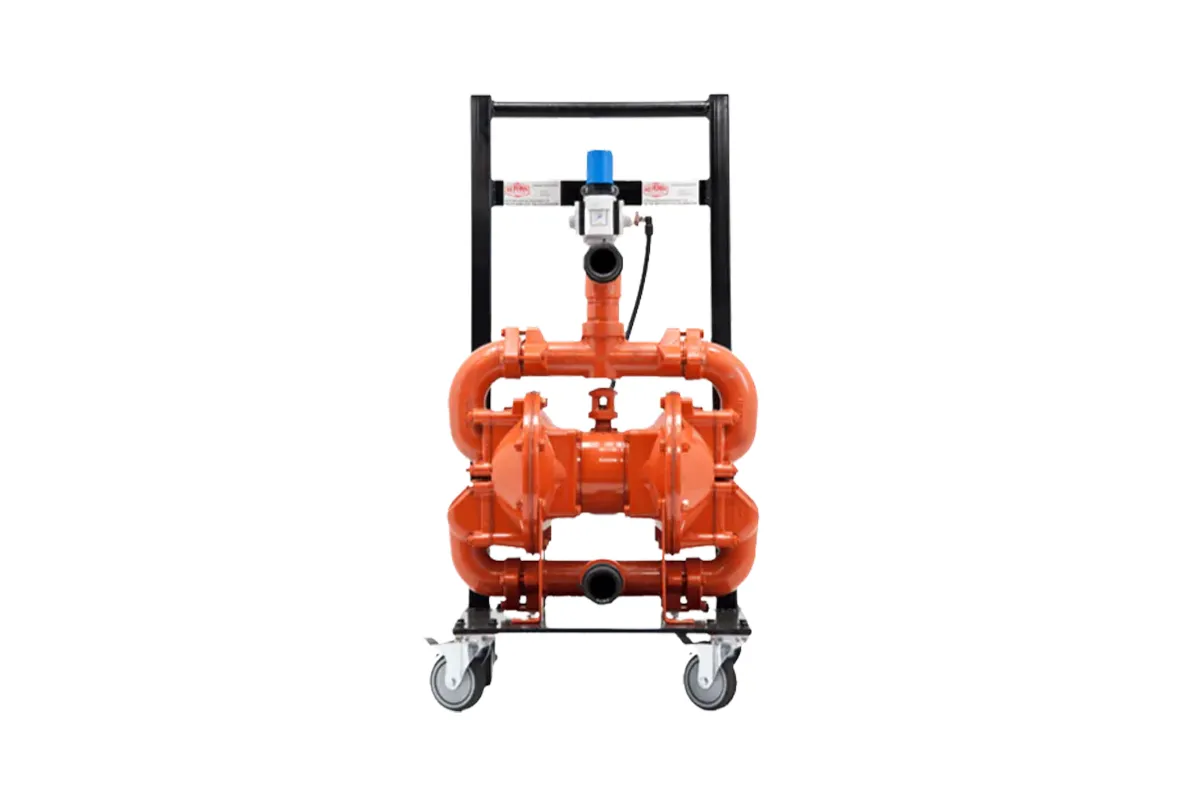

- PX810
- PX800

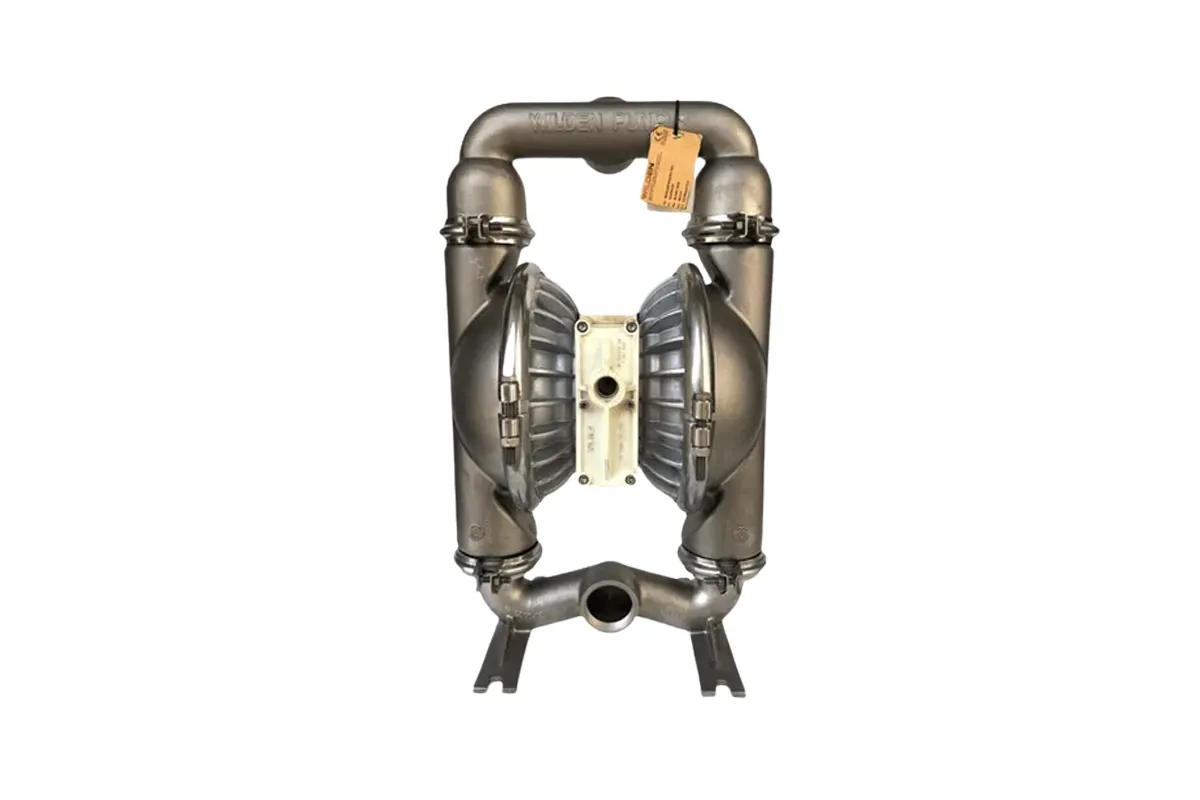

- P8 FDA

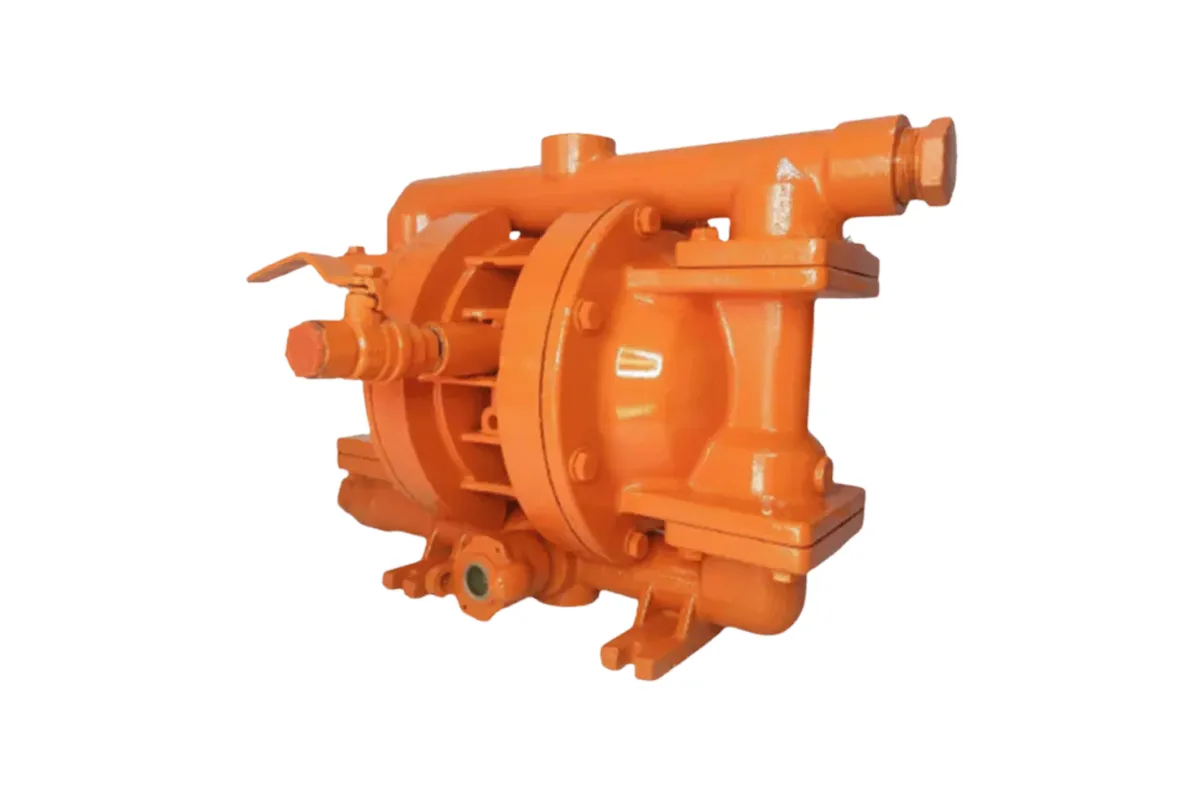

- PX200

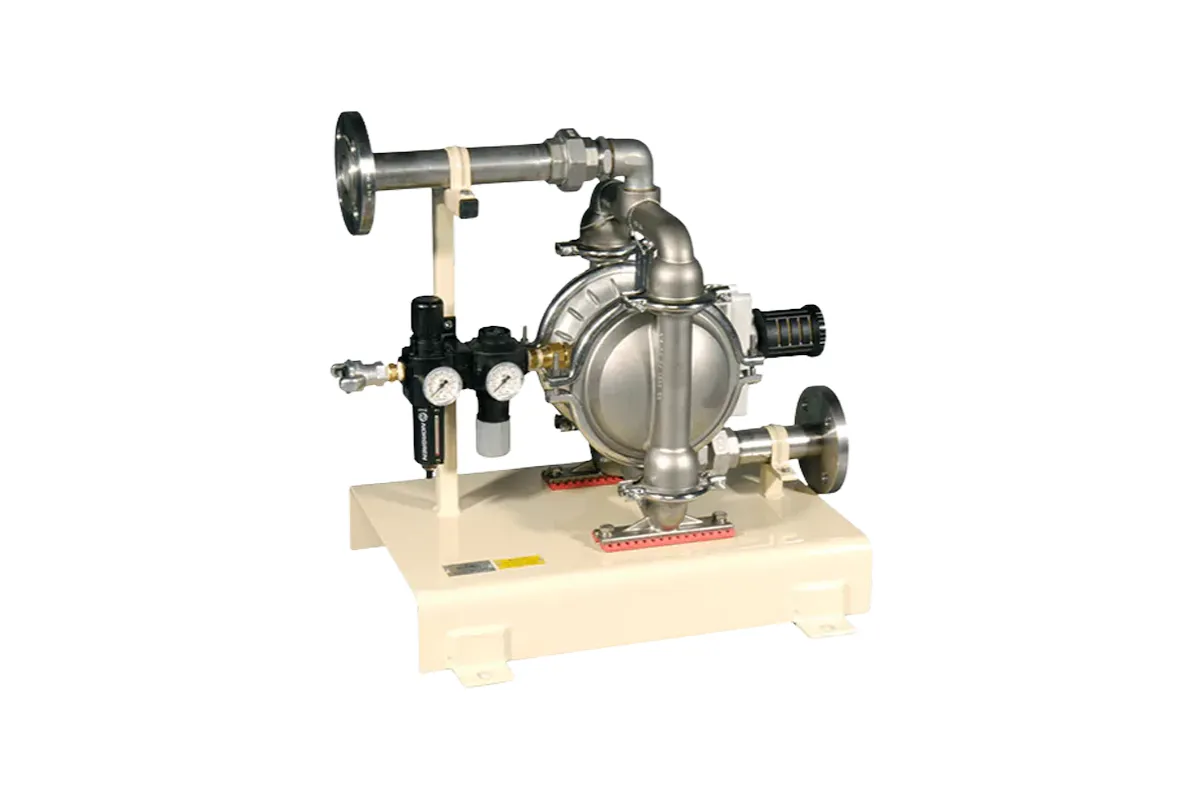

- PX2

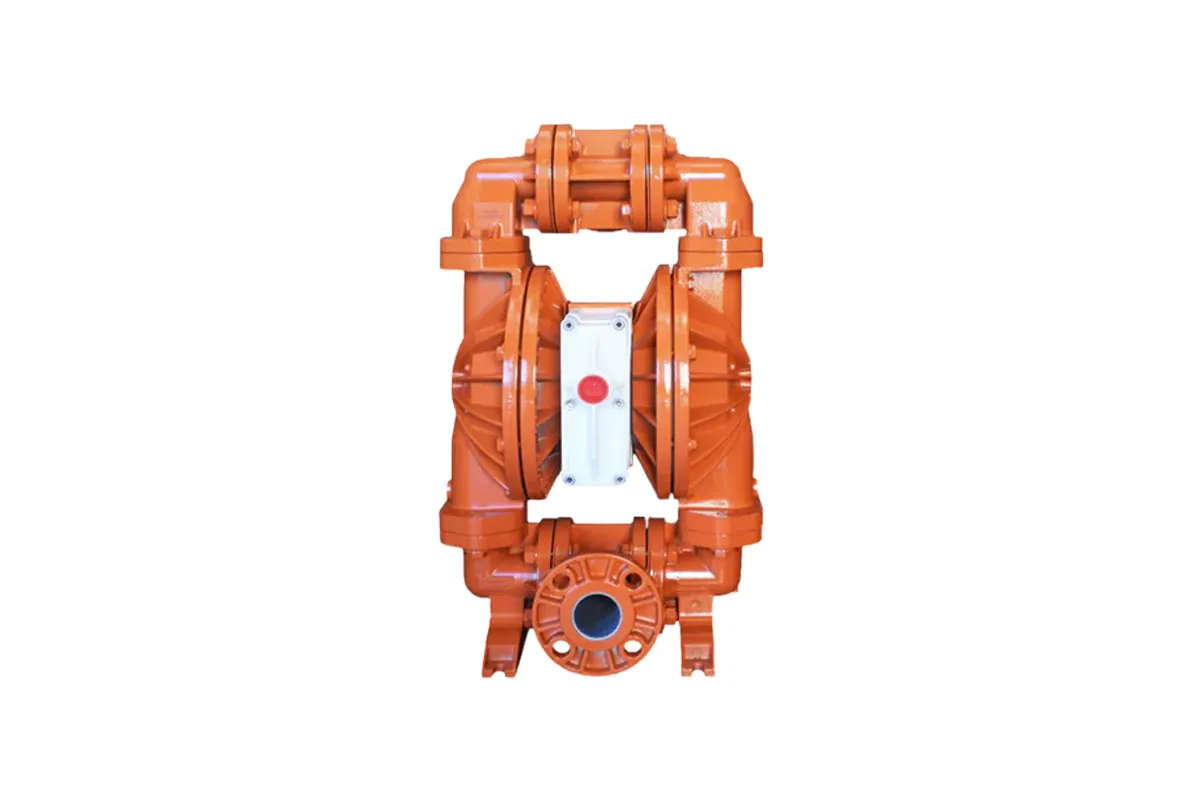

- PX400

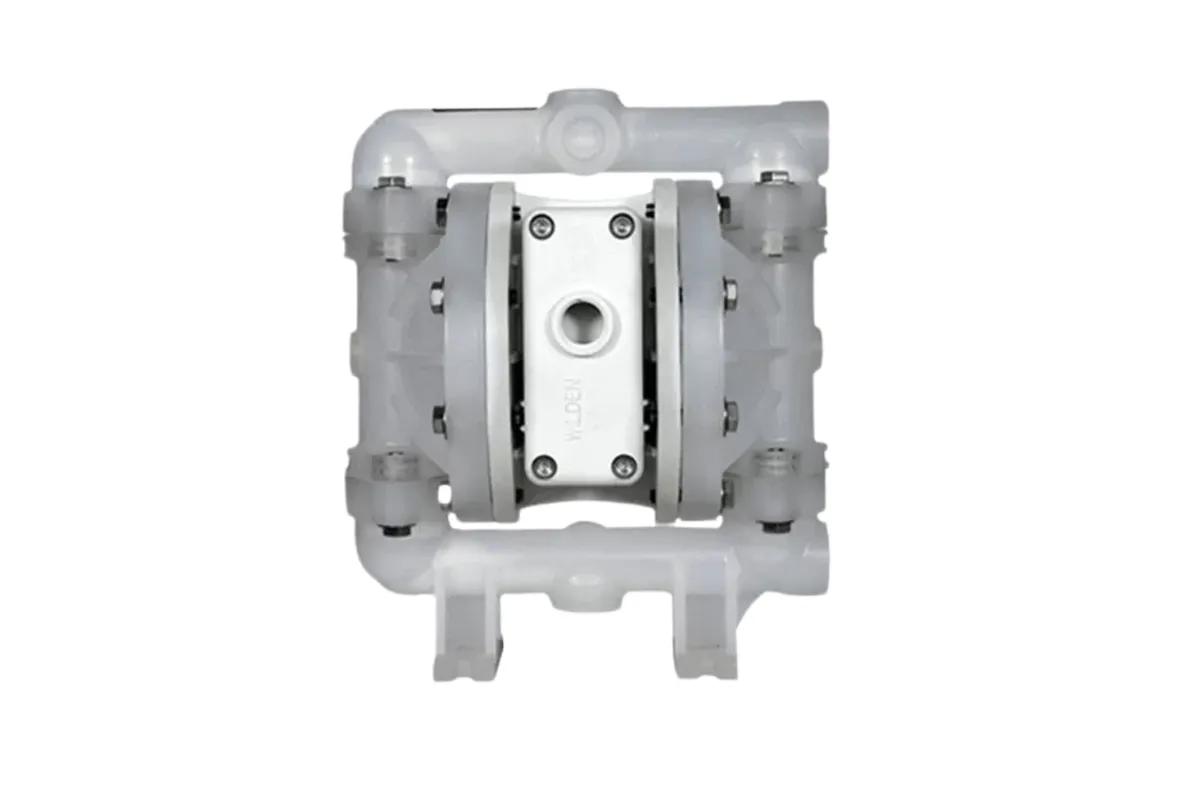

- P100

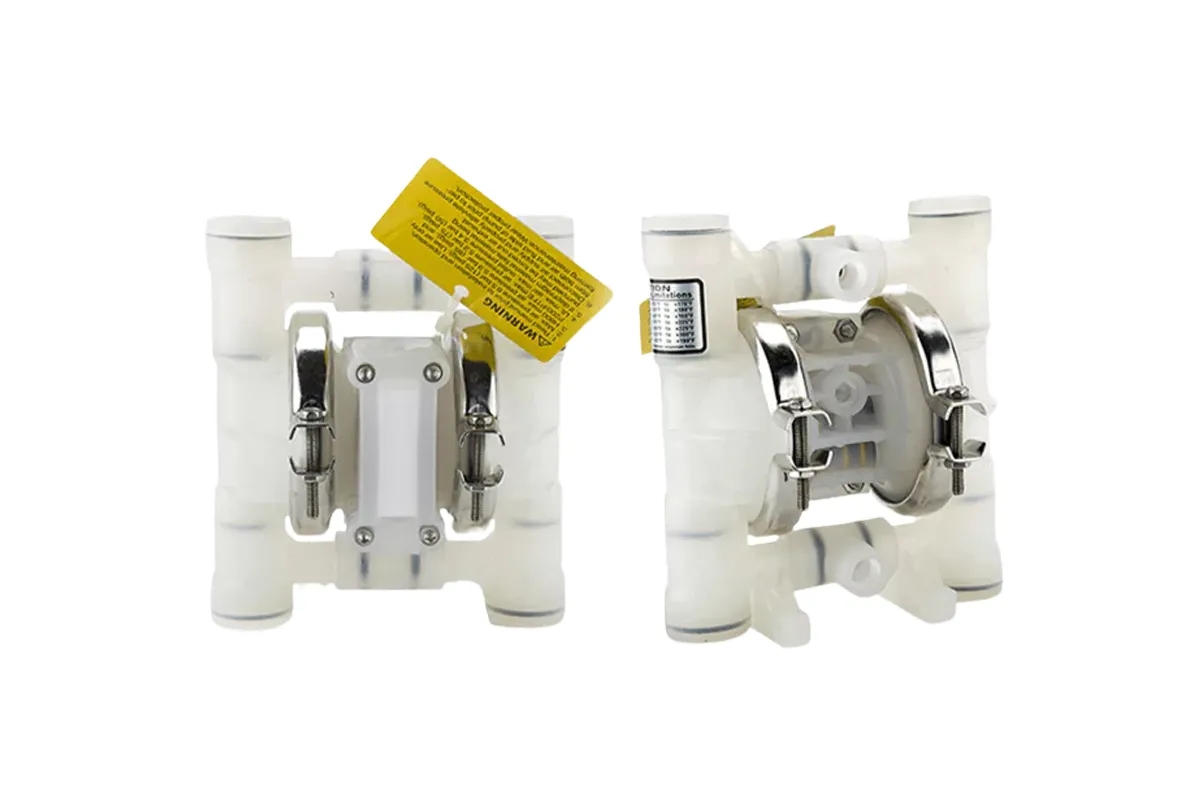

- P.025

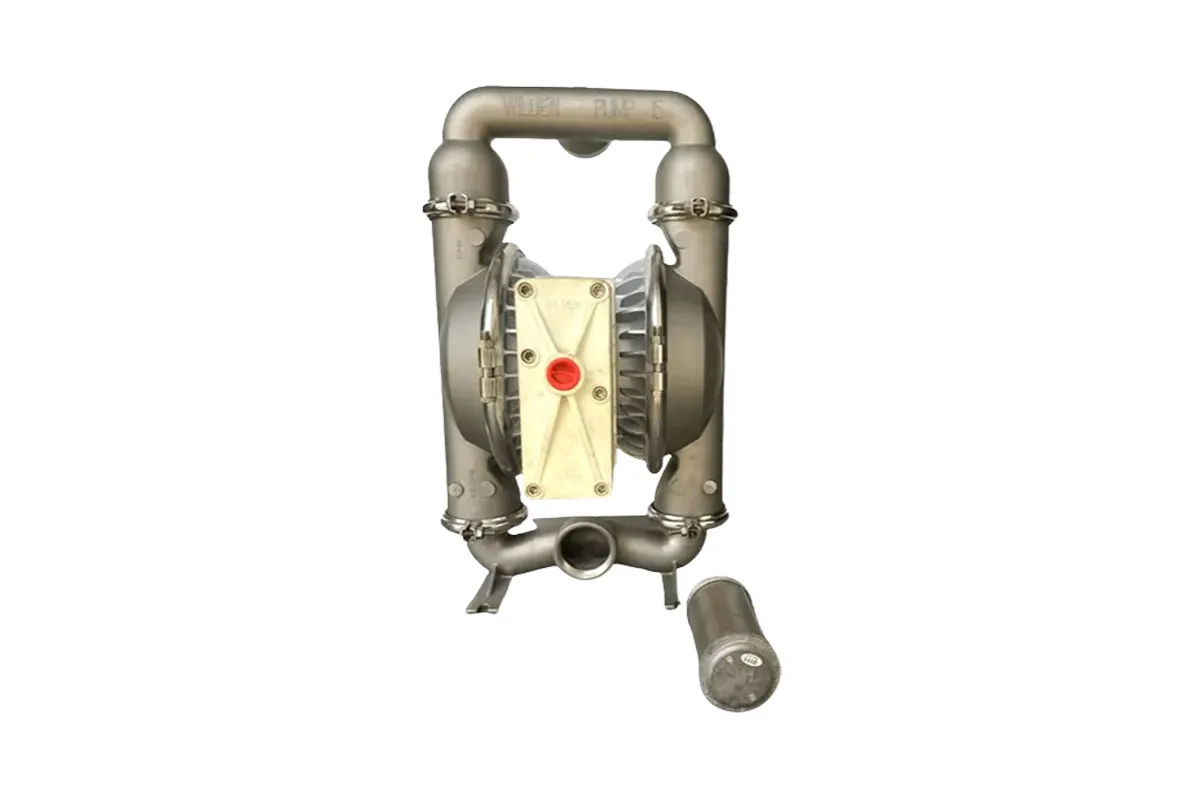

- P15
- PX400

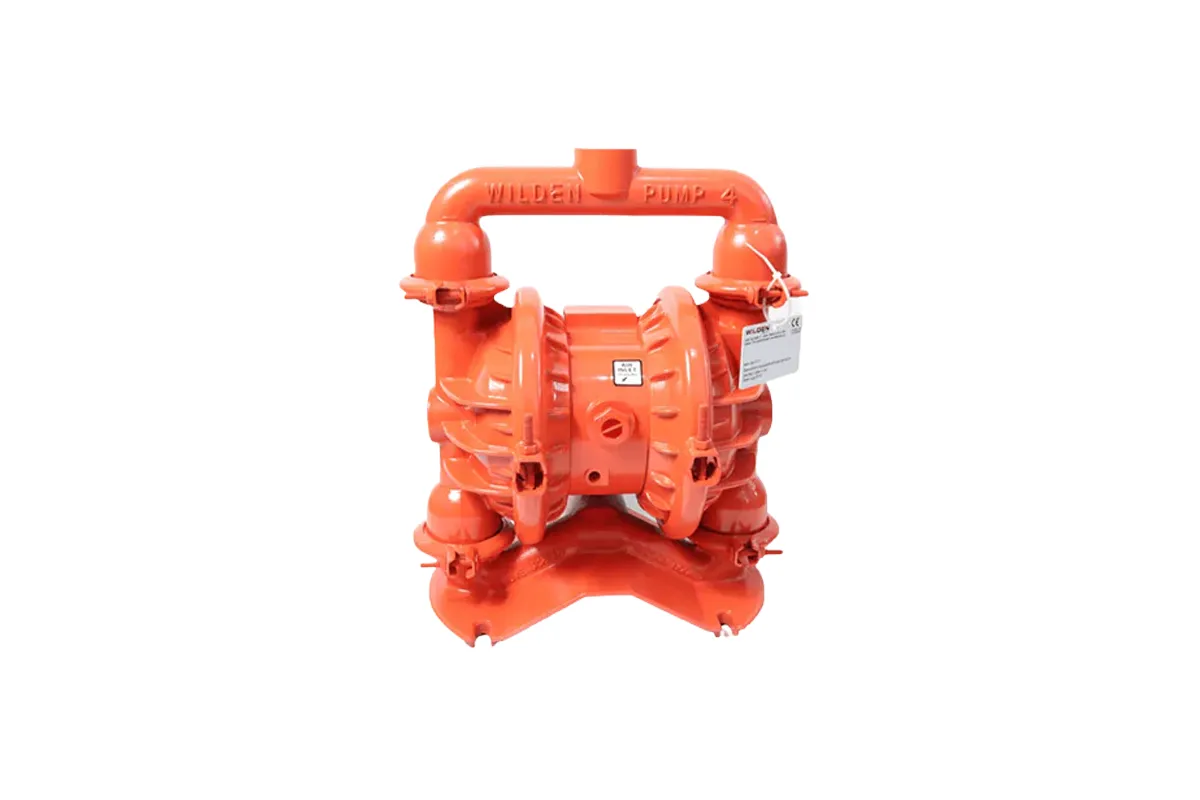

- P4

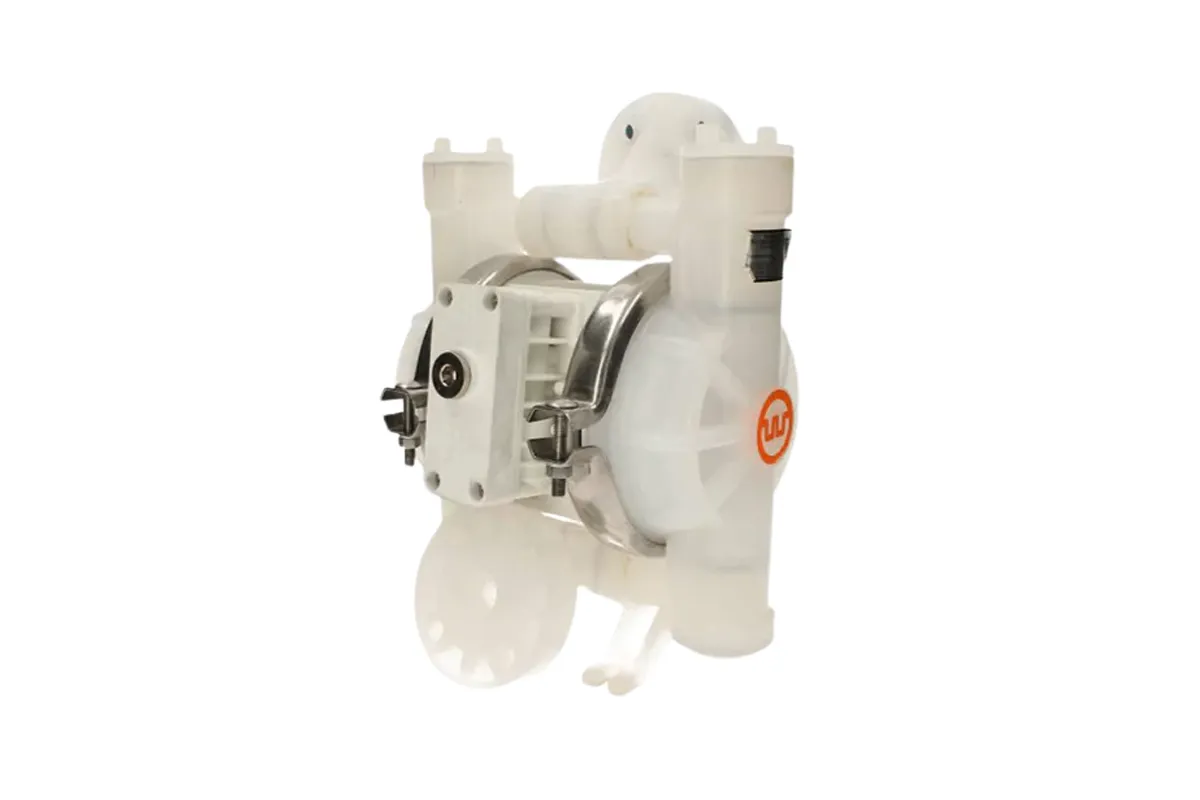

- P2
