ProMinent
ProMinent offers the broadest range of metering pumps and technologies. They provide the chemical, petrochemical, oil and gas, food and beverage, industrial and municipal water treatment, and process industries with reliable metering, water treatment and disinfection, measuring and control, and digital fluid management solutions.
Investing in product innovation and state-of-the-art manufacturing processes, ProMinent resolves the pain points in accurate metering and dosing and safe handling of toxic, corrosive liquids and other sensitive fluids.

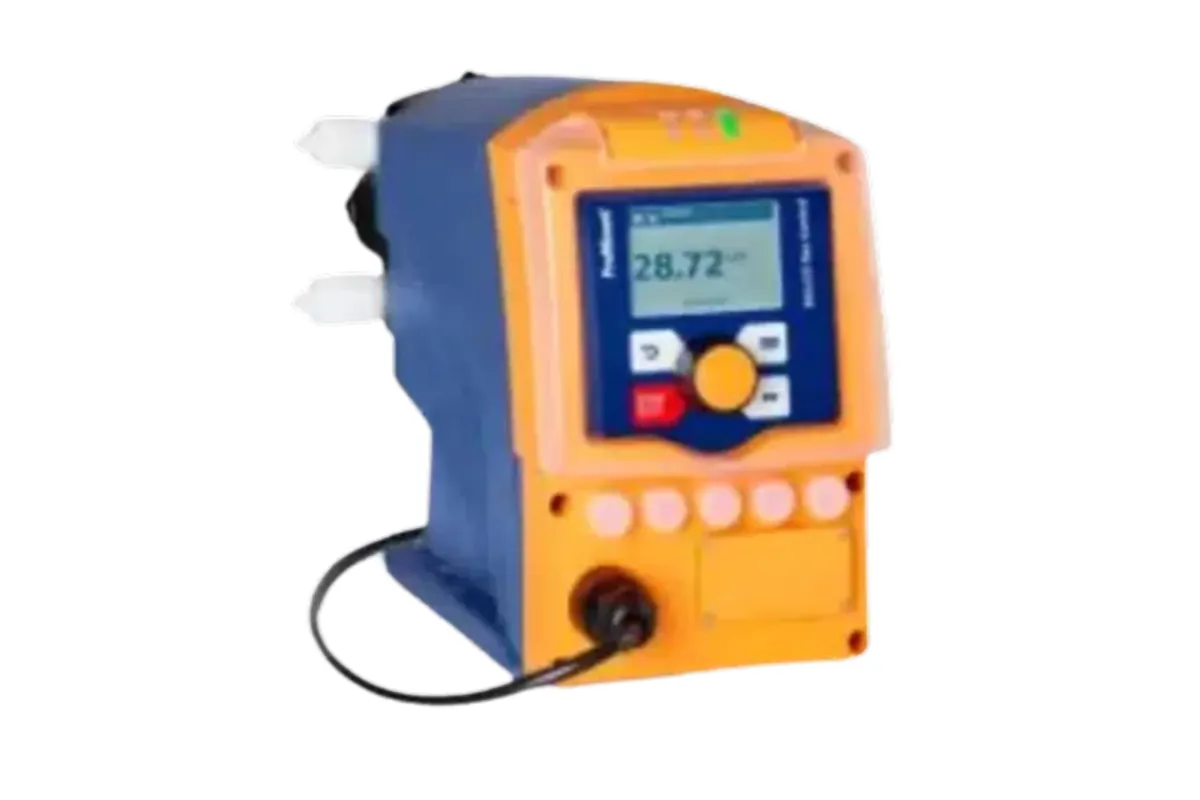

ProMinent Diaphragm Metering Pumps
They use durable, high-quality diaphragms to ensure maintenance and fault-free operation. These dosing pumps are hermetically sealed, making them the first choice in dosing aggressive media.
Being leak-free also makes them ideal for sanitary applications in the food, chemical, cosmetics, and pharmaceutical industries.
Features & Benefits
- Air- and water-tight sealing ensures safe and leak-free operation
- Comes with diaphragm rupture monitoring/warning system
- Metering reproducibility is better than ± 2 % within the 30 – 100% stroke length range under defined conditions and correct installation
- Micrometre adjustment dial for the stroke length guarantees precise adjustments and high reproducibility
- Self-bleeding dosing head makes the pumps suitable for outgassing media
- Compensation allows stable and reliable operation during mains voltage fluctuation
Available Options
- Wetted materials options
- Drive options
- Control options
- Customised design available
- Spare parts kit
- Mounting options
Key Specifications
- Capacity: Up to 2100 l/h
- Pressure: Up to 2.5 MPa
Principle of Operation
Dosing or metering Pumps consistently and accurately deliver sets of volume into a process. They are usually positive displacement types – in the case of this series, a diaphragm pump – to ensure that accurate volumes are dosed regardless of the pressure of the line they are injecting into. Metering pumps can be controlled in various ways, from the speed of rotation to stroke length within a solenoid metering design or via relay or timer – for this series, a solenoid.
Range

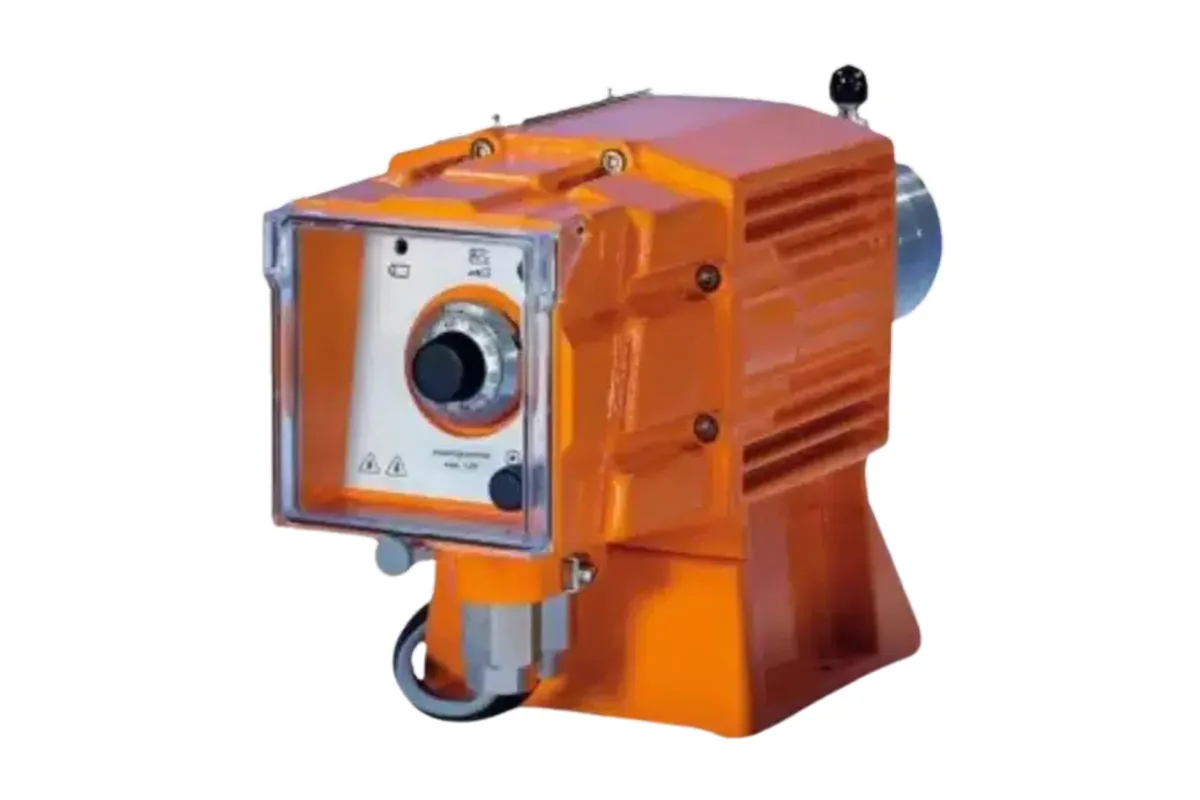

- Extronic
Capacity: Up to 60 li/h
Max back pressure: Up to 2.5 MPa

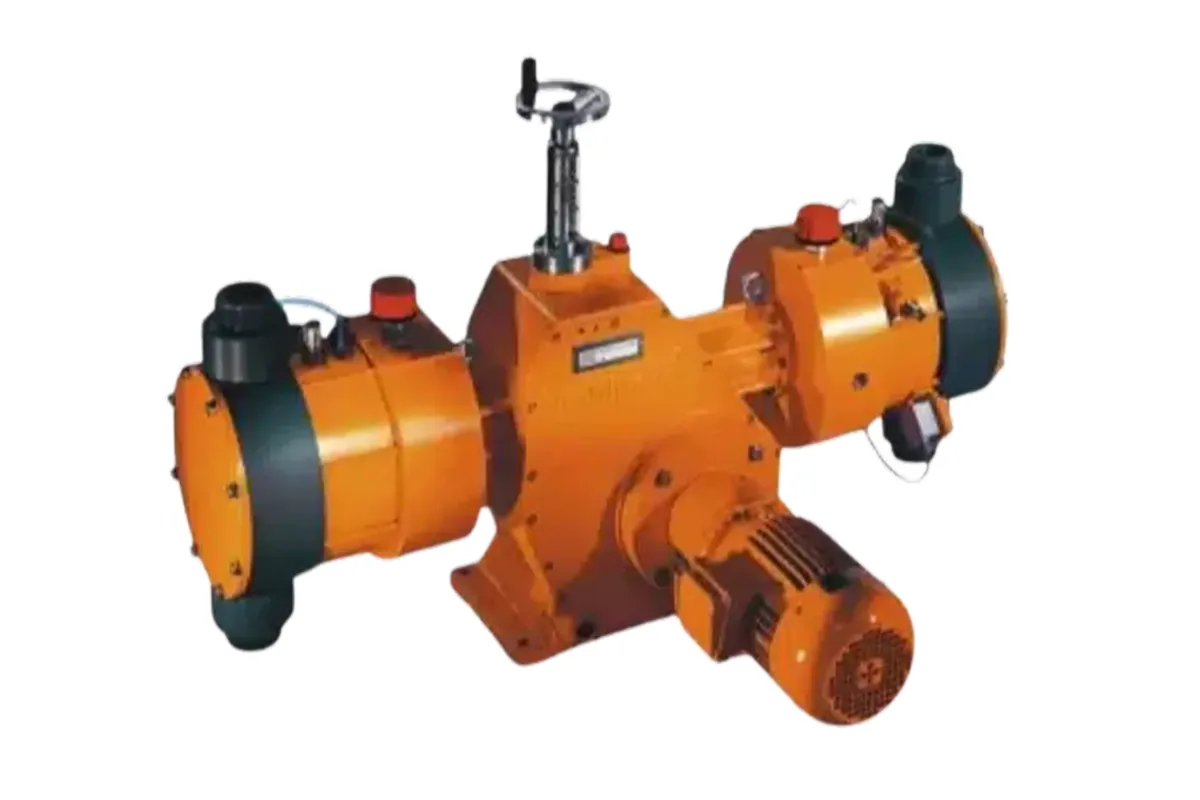

Max stroke rate: Up to 120 strokes/min - Makro TZ
Capacity: Up to 2100 li/h
Max back pressure: Up to 1.2 MPa
Max stroke rate: Up to 180 stokes/min

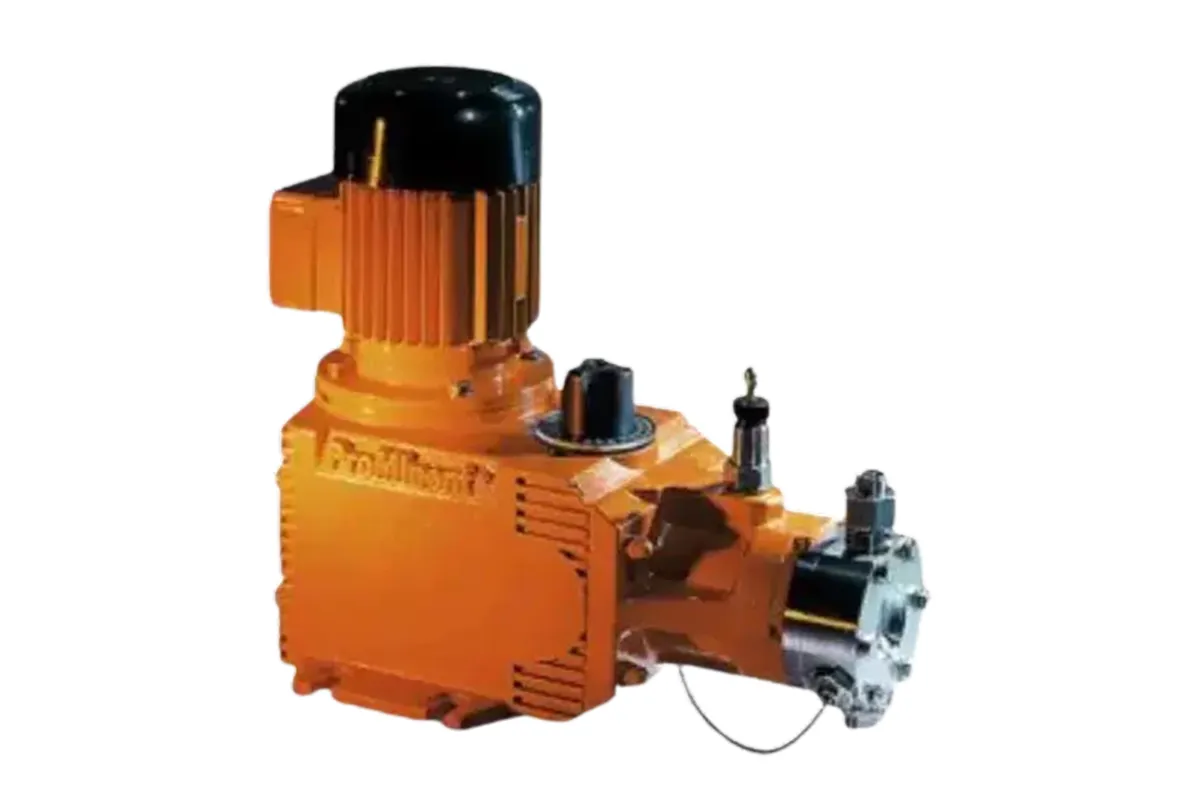

ProMinent Hydraulic Diaphragm Metering Pumps
ProMinent’s hydraulic diaphragm metering pump range boasts precise dosing and minimal maintenance. All pumps in this group are equipped with a pressure relief valve to protect against overload. They also have a multi-layer diaphragm with a rupture warning system to ensure operator safety, mitigate critical downtime, and prevent the feed chemicals from mixing with the hydraulic oil.
Another selling point of ProMinent hydraulic diaphragm metering pumps includes the sealless, no-leak design, which makes them suitable for handling hazardous chemicals and other challenging fluids.
Features & Benefits
- Advanced, safe, and leak-free hydraulic system design
- Metering accuracy is better than ±0.5% to ±1%
- Flow rate can be adjusted both in the running and stop states
- Operates safely even without a medium in the pump head
- Noise-free, small size, simple operation, and convenient maintenance
Available Options
- Wetted materials options
- Drive options
- Control options
- Customised design available
- Spare parts kit
- Mounting options
Key Specifications
- Capacity: Up to 7400 l/h
- Pressure: Up to 300 MPa
Range
- Hydraulic Diaphragm Metering Pump HYDRO Classic
Capacity: Up to 1450 l/h
Pressure: Up to 10 MPa - Hydraulic Diaphragm Metering Pump Makro/5
Capacity: Up to 6108 l/h
Pressure: Up to 2.5 MPa - Hydraulic Diaphragm Metering Pump ORLITA MF
Capacity: Up to 1400 l/h
Pressure: Up to 45 MPa - Hydraulic Diaphragm Metering Pump ORLITA EVOLUTION
Capacity: Up to 7400 l/h
Pressure: Up to 40 MPa - Hydraulic Diaphragm Metering Pump ORLITA MIKRO
Capacity: Up to 18 l/h
Pressure: Up to 40 MPa - Hydraulic Diaphragm Metering Pump ORLITA MH
Capacity: Up to 320 l/h
Pressure: Up to 78 MPa - Hydraulic Diaphragm Metering Pump ORLITA MHHP
Capacity: Up to 11 l/h
Pressure: Up to 300 MPa - Hydraulic Diaphragm Metering Pump HYDRO API
Capacity: Up to 1506 l/h
Pressure: Up to 10 MPa - Hydraulic Diaphragm Metering Pump ORLITA EVOLUTION E1Sa
Capacity: Up to 122 l/h
Pressure: Up to 26 MPa
ProMinent Plunger Metering Pumps
Plungers are synonymous with accurate metering. The heart of the liquid end in a plunger metering pump is a high-resistance plunger made from coated stainless steel. Extended product life is achieved by highly durable wetted parts, ball, piston, and seal.
Their modular construction makes ProMinent plunger metering pumps the cost-efficient option for pumping fluids.
Features & Benefits
- Flexible adaptation to processes
- Robust stainless steel construction
- High resistance plunger for long operational life
- High processing quality and metering accuracy within the 10 – 100% stroke length range
Available Options
- Wetted materials options
- Power end options: three-phase standard motor, 1-phase AC motor, ATEX motors
- Control options
- Customised design available
- Spare parts kit
- Mounting options
Key Specifications
- Capacity: Up to 6000 li/h
- Pressure: Up to 600 bar
- Suction Lift up to 5 m WC
- Stroke length adjustment range: 0 – 100%
- Electric motor IP55
Range
SIGMA 2 PLUNGER PUMP (BASIC TYPE)
The plunger metering pump Sigma/ 2 (Basic Type) (SBKa) is an extremely robust and high-performance metering pump. The pump capacity of which can be precisely adjusted in 0.2% increments, either manually or optionally, with an electric actuator or control drive. A wide range of power end versions is available for use in areas at risk from explosion with ATEX certification.
MAKRO TZ PLUNGER METERING PUMP
The plunger metering pumps Makro TZ impresses with its excellent process reliability. They boast powerful performance and are built to last long. Their modular construction enables them to be outstandingly adapted to the performance requirements of the respective application.
MAKRO/ 5 PLUNGER METERING PUMP
The plunger metering pump Makro/ 5 can virtually be used throughout the low-pressure range and its modular construction enables it to be outstandingly adapted to the performance requirements of the respective application.
ORLITA PS PLUNGER METERING PUMP
The high-performance plunger metering pump ORLITA PS enables precise pump capacities at high temperature and pressure conditions. These plunger pumps are simple, robust, and reliable. Their modular construction permits the free combination of drive units, drives and dosing heads, producing a pump for a range of different feed rates and media operating at different working pressures.
ORLITA DR PLUNGER METERING PUMP
The ORLITA DR is a valveless plunger metering pump and can be operated within a broad stroke rate range. It is designed to handle high-viscosity and extremely high-viscosity media of up to 106 mPas within a wide temperature range from -40 °C to 400 °C. They are also capable of handling fluids with solid fractions.
ProMinent Peristaltic Metering Pumps
Peristaltic metering pumps are used in a capacity range of between 10 ml/h and 410 l/h. They pump against a pressure of up to 8 bar. The incredible durability and wide range of chemical compatibility of the high-performance hoses used by ProMinent are particularly impressive.
Our DULCOFLEX peristaltic metering pumps ideally combine the benefits of peristaltic pumps and metering pumps. They therefore support batch or proportional flow dosing, for example. Depending on the medium, they meter with a precision of up to ±1 %. They can be networked with our fluid management platform using DULCONNEX, making remote monitoring possible. They are just as reliable as our other metering pumps, are self-priming and can handle outgassing media with ease. Thanks to the ingenious hose replacement processes, this task is completed in no time and requires very little material.
Features & Benefits
- Adjustment of the metering rate directly in l/h
- Simple, menu-guided hose change
- No problems with very gaseous media or air locks
- IoT capable and can be connected to the
- DULCONNEX IIoT solution developed by
- ProMinent
- Product/working fluid protection: Sole contact with media in the hose
- Illuminated 3” LCD and 3-LED display for operating, warning and error messages, visible from all sides
Available Options
- Hose materials options
- Spare parts kit
- Connectivity options for
- DFYa pumps
- Mounting options
Key Specifications
- Feed rates up to 410 li/hr
- Back pressures up to 8 bar
Range
DULCOFLEX DFXA PERISTALTIC PUMPS
DULCOFLEX DFXa meters outgassing, viscous, abrasive or shear-sensitive media and is setting new standards in metering. Linear and reproducible metering (± 1 %) is guaranteed with this peristaltic pump under all process conditions. Hose replacement is a very simple process. Valve-free metering with the accuracy of a diaphragm metering pump, tapping into all the properties of a peristaltic pump. A brushless direct current motor forms the heart of the DULCOFLEX DFXa. Its ingenious control provides for precise metering and reduced pump capacity with continuous metering up to 10 ml/h.
DULCOFLEX DFYA PERISTALTIC METERING PUMPS
The valveless peristaltic pump DULCOFLEX DFYa guarantees precise, linear and reproducible metering in all process conditions. It meters gaseous, viscose, shear-sensitive media, possibly containing particles, with ease – ProMinent is therefore setting new standards in metering with peristaltic pumps.
The new metering pump DFYa, the big brother of the DFXa, adds an intelligent peristaltic pump. This is how they work: The feed chemical is pumped by the rotor clamping the hose to the top capacity range of the ProMinent portfolio.
The new generation of peristaltic metering pumps can now be controlled electronically. It meters without the need for a valve and with a level of precision not previously possible. And yet it retains all the benefits of a peristaltic pump, which is why highly outgassing, high-viscosity, abrasive or shear-sensitive fluids, sometimes containing particles, can also be perfectly metered with the DFYa.
Principle of Operation
The hose in contact with the housing is disconnected by rollers sitting on a rotor. The rotary movement of the rotor moves the disconnected point in the desired pumping direction and the medium is pumped. Once the roller has pressed the medium through the hose in the dosing head, the hose is relieved again. The hose lines up again, produces negative pressure and fresh medium is drawn into the hose.
The feed rate can be increased in a linear fashion by increasing the rotor speed.
