Pioneer Pump
Pioneer Pump, a trusted manufacturer of centrifugal pumps, is committed to producing pumps that are not only durable and reliable but also of the highest quality. Their pumps deliver superior flow, increased head, and enhanced efficiency, making them ideal for the most demanding fluid transfer applications. They achieve this by using premium materials, including ductile iron volutes, CA6NM stainless steel impellers, and 17-4 PH stainless steel shafts. With large bearings, oversized shafts, and high-performance seals, their pumps provide exceptional reliability while minimising environmental impact.

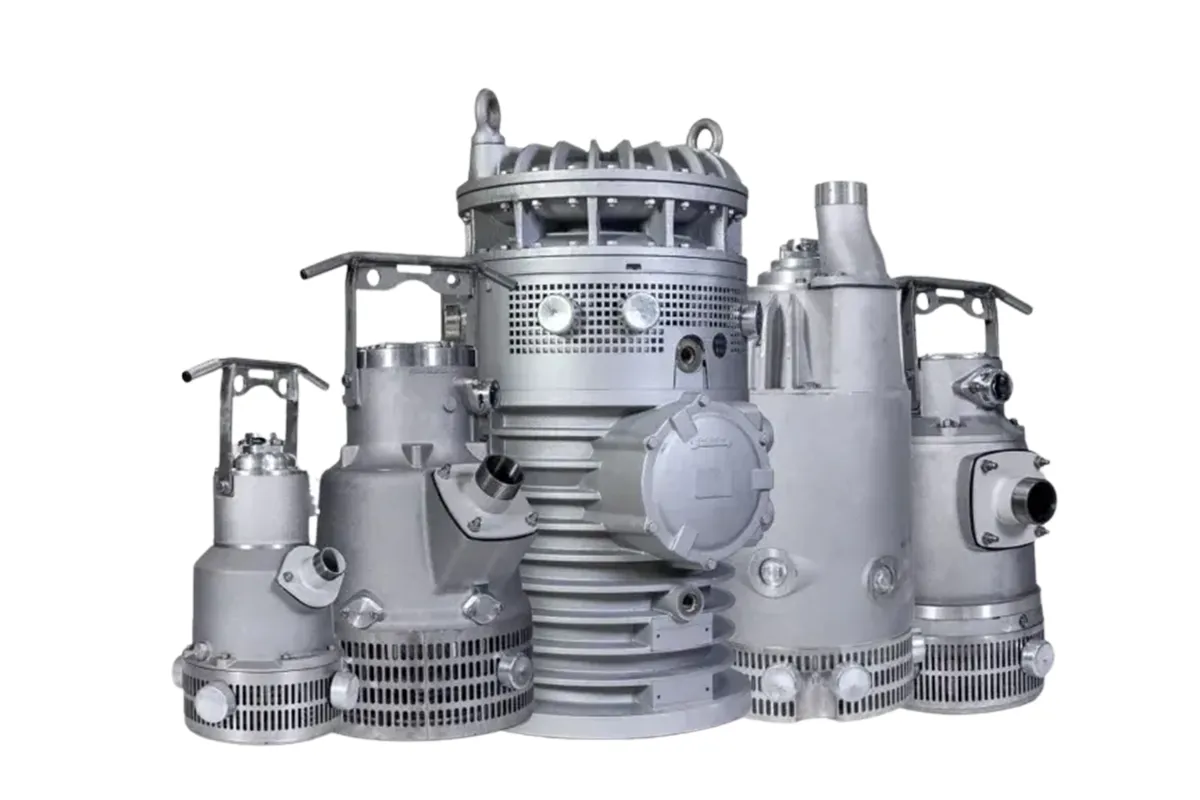

Pioneer Pump Minetuff®
Minetuff® submersible pumps are a core component of Pioneer Pump’s product range, known for their durability and high performance. Designed for use in both mining operations and construction sites, these pumps deliver reliable wastewater management across various applications.
These pumps are equipped with Franklin Electric’s high-quality motors, ensuring a longer operational life and minimal maintenance requirements. Built with robust construction and adjustable hydraulics, Minetuff® pumps are capable of efficiently handling smaller abrasive materials like sand, small stones, and clay.
Features & Benefits
- Heavy-duty motors — With a Class H insulation system and integrated thermistors for protection against thermal overload to increase uptime
- Mechanical seals — Specially designed for the Minetuff® Series with tungsten carbide and/or sillicon carbide seal faces enclosed in 316 SS
- Distinctive impeller composition — Utilises a special duplex stainless steel with chrome, copper, and nitrogen for increased toughness and corrosion resistance
- Polyurethane-coated wear parts — Boasting better tensile and fatigue strength than standard polyurethane and higher resilience than nitrile butadiene rubber, extending life and reducing costs
- Aluminum casting — The 5.9 kW to 42.7 kW models are cast in lightweight aluminium alloy for portability, and their thick casting walls provide extra durability
Available Options
- Basic Repair Kit
- Hydraulic Kit
- O-ring Kit
- Wear Kit
- Wet End Kit
Applications
- Mining/Quarry
- Construction
- Wastewater treatment
Range
MTP 8HP (5.9KW)
Sizes: 2”, 3”
Voltage: 460 VAC – 575 VAC
Amps (Full Load): 7.5 A to 10 A
Cable length: Up to 15.24 m
MTP 13HP (9.6KW)
Sizes: 3”, 4”
Voltage: 460 VAC – 575 VAC
Amps (Full Load): 11 A to 16 A
Cable length: Up to 15.24 m
MTP 30HP
Sizes: 4”, 6”
Voltage: 460 VAC – 575 VAC
Amps (Full Load): 28 A to 38 A
Cable length: Up to 15.24 m
MTP 58HP (42.7KW)
Sizes: 4”
Voltage: 460 VAC – 575 VAC
Amps (Full Load): 50 A to 65 A
Cable length: Up to 15.24 m
MTP 140HP (103KW)
Sizes: 4”, 6”
Voltage: 460 VAC – 575 VAC
Amps (Full Load): 116 A to 153 A
Cable length: Up to 15.24 m
Pioneer Vacuum-Assisted and Standard Centrifugal Pumps
Pioneer Pump’s standard centrifugal pumps are designed with advanced hydraulic engineering, making them ideal for high-pressure sewage, trash, and dewatering applications. Their large stainless-steel impeller eye provides lower Net Positive Suction Head required (NPSHr), resulting in higher lift capacity. Available in sizes ranging from 3 inches to 18 inches, Pioneer standard centrifugal pumps offer a wide variety of flow rates and head options to meet diverse application needs.
Features & Benefits
- Reduce operating costs with a high-performance impeller design that provides more flow with less horsepower
- They offer lower maintenance and overhead costs due to their durable construction and 17-4 PH stainless steel shaft.
Available Options

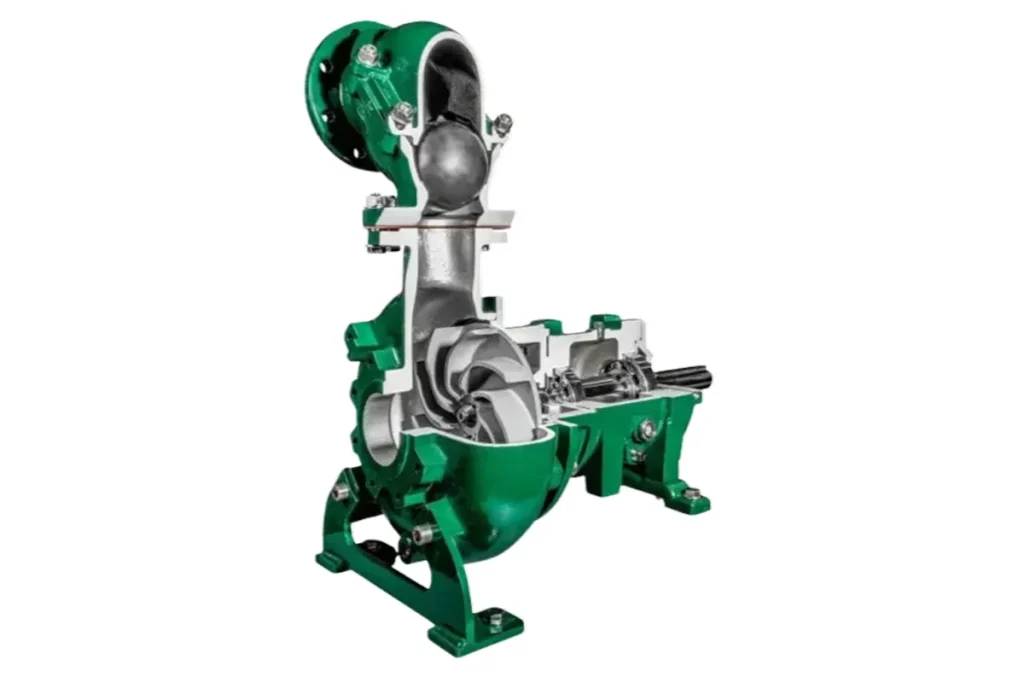

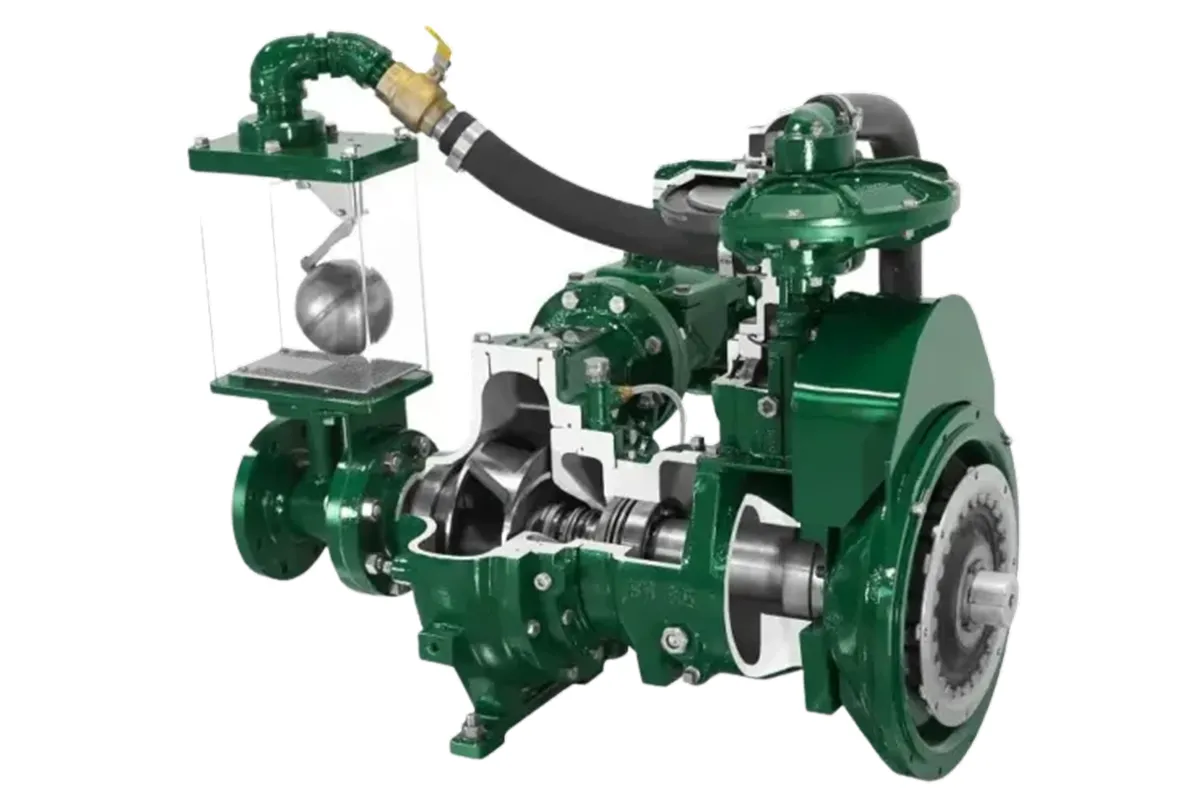

PIONEER PRIME
All Pioneer standard centrifugal pumps can be upgraded to a Pioneer Prime vacuum-assisted self-priming pump to:
- Deliver extreme flows with high-head capability
- Enable rapid (50 CFM) unattended priming and operation
- Achieve better suction lift and faster priming.
PUMP PACKAGE
A comprehensive range of pump package options is available for fixed and portable installations.
- Select from diesel engine and electric motor power options
- Configurations include open and enclosed, skid and trailer packages
Range
CLEAR LIQUIDS END SUCTION SERIES
The best-in-class standard centrifugal clear liquid processing pumps are designed to optimise performance in demanding applications such as mine dewatering and industrial process water. They are equipped with ductile iron wet ends, 17-4 PH stainless-steel shafts, and various rugged impeller materials to increase durability and resist high pressure and entrained moisture.
Features
- Available from 3” to 12” sizes
- All high-head models are fitted with casing balanced line to improve mechanical seal life
SOLIDS HANDLING END SUCTION SERIES
Pioneer centrifugal pumps are engineered for the toughest trash, sewage, and dewatering applications. They are available in a wide range of sizes and flow rates to cover most wastewater and process flow needs.
Features
- Available from 4” to 18” sizes
- The pumps can pass solids with sizes 2 to 4.5 inches in diameter
VORTEX SERIES
The Vortex Series™ is the ultimate solution for challenging applications dealing with solid-laden fluids. These chopper pumps utilise a recessed stainless impeller, allowing large solids to pass without clogging. By using vortex technology and eliminating internal wetted parts in standard pumps like chopper blades, they significantly reduce maintenance time and costs.
Features
- Available in 4” to 8” sizes
- Uses a high wear-resistant, recessed ductile iron impeller

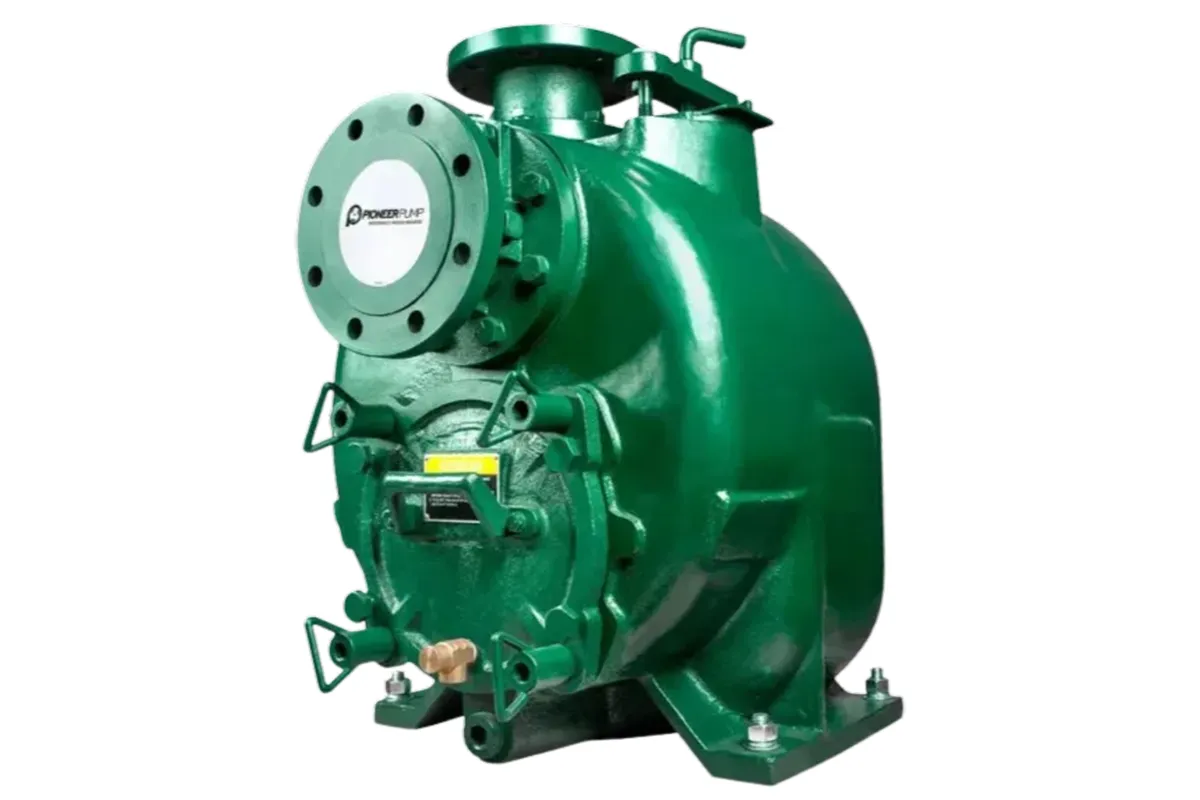

Pioneer Pump Self-Priming Series
Pioneer self-priming pumps are built to efficiently handle both solids and clear liquids. Once primed, they can effortlessly reprime themselves, providing low maintenance and cost-effective performance. For enhanced durability and reliability, these pumps are constructed from high-quality materials, including heavy-wall ductile iron volutes and 17-4 PH stainless steel shafts.
Benefits
The external shim-less impeller adjustment feature of Pioneer self-priming pumps enables easy adjustment of tolerance between the impeller and wearplate.
The pumps use a cartridge-type tungsten mechanical seal that simplifies maintenance and installation.
The rotating assembly is fitted with a double-lip seal with an atmospheric drain for increased bearing protection.
GT Series
GT self-priming pumps are engineered for increased durability and to operate at higher speeds than standard pumps.
Features
- They use larger shafts, heavy-duty bearing frames and ductile iron bodies.
- The pumps utilise corrosion-resistant 14-4 stainless steel shaft for reliability.
- Their unique suction design improves NPSHr and alleviates abrasion wear on the pump.
- The distinct pump cover combines both the fill access port and flapper check valve into one for ease of use.
Key Specifications
- Suction/discharge sizes: 3” to 6”
- Priming type: Wet prime
- Max flow: Up to 511 m3/h
- Max head: Up to 76 m
- Max efficiency: Up to 62%
- Max solids: Up to 76 mm
Applications
- Food processing
- Wastewater treatment
- Waste handling
- Chemical processing
- Industrial applications with high-performance requirements

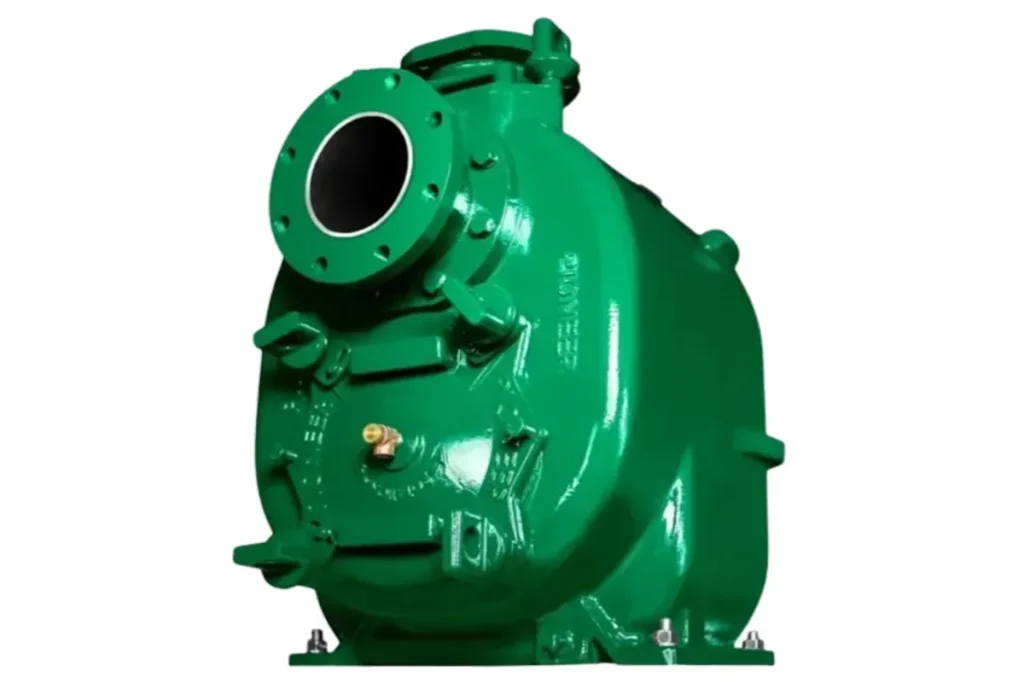

GS Series
The Pioneer GS Series represents the next generation of self-priming pumps designed for handling both solids and clear liquids. This lineup provides superior performance, enhanced reliability, and improved ease-of-maintenance features.
Features
- GS pumps are designed to effectively manage both solids and clear liquids, offering outstanding performance and reliability.
- The pump footprint is compatible with other brands, making it an ideal direct replacement option.
- The rotating assemblies are interchangeable with other standard self-priming pumps.
Key Specifications
- Suction/discharge sizes: 3” to 10”
- Max flow: Up to 783 m3/h
- Max head: Up to 53 m
- Max efficiency: Up to 76%
Max solids: Up to 76 mm
Applications
- Lift stations
- Municipal sewer
- Industrial wastewater needs
