Pentair Aurora
All-Pumps provides an extensive range of Edwards® gear pumps and spare parts from Aurora®. A brand under the Pentair umbrella, Aurora® specialises in manufacturing fire protection solutions for various industries. With a century of experience providing pumping solutions for every industrial application, Aurora® is committed to integrating the latest technologies in pump manufacturing to deliver products with superior quality and performance, outlasting competitors.

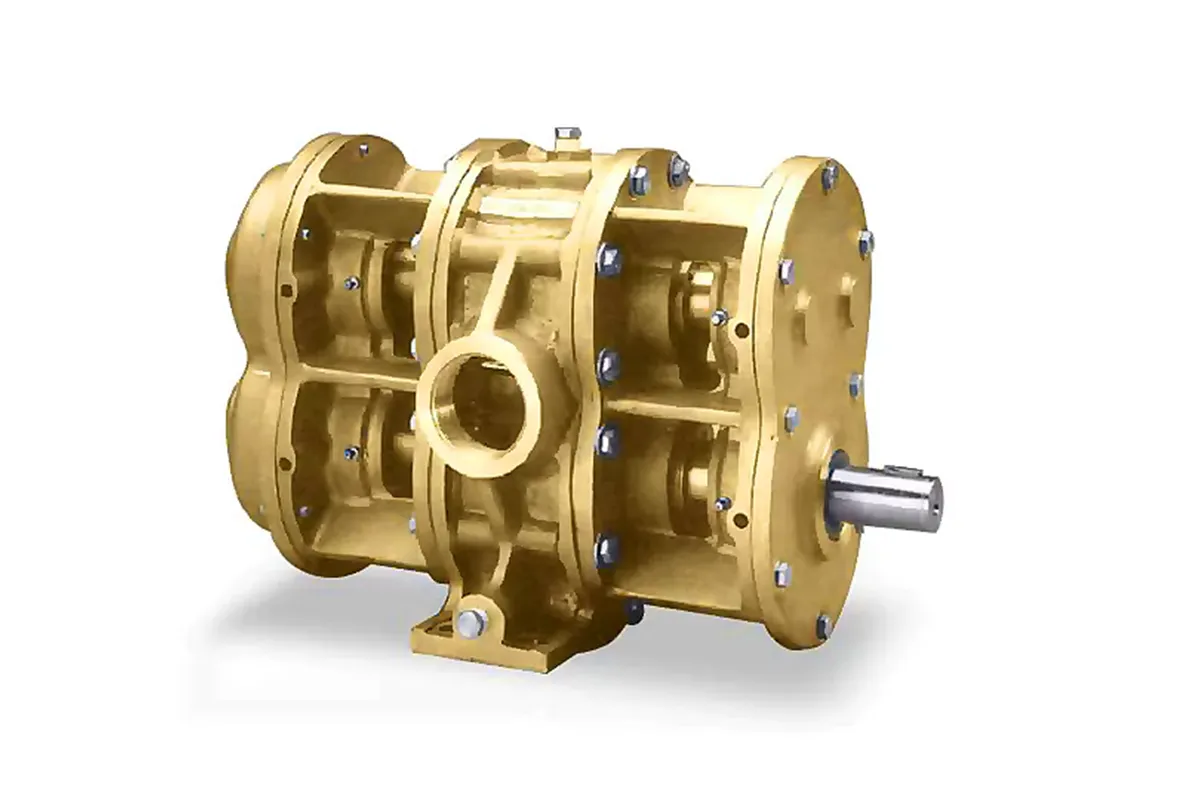

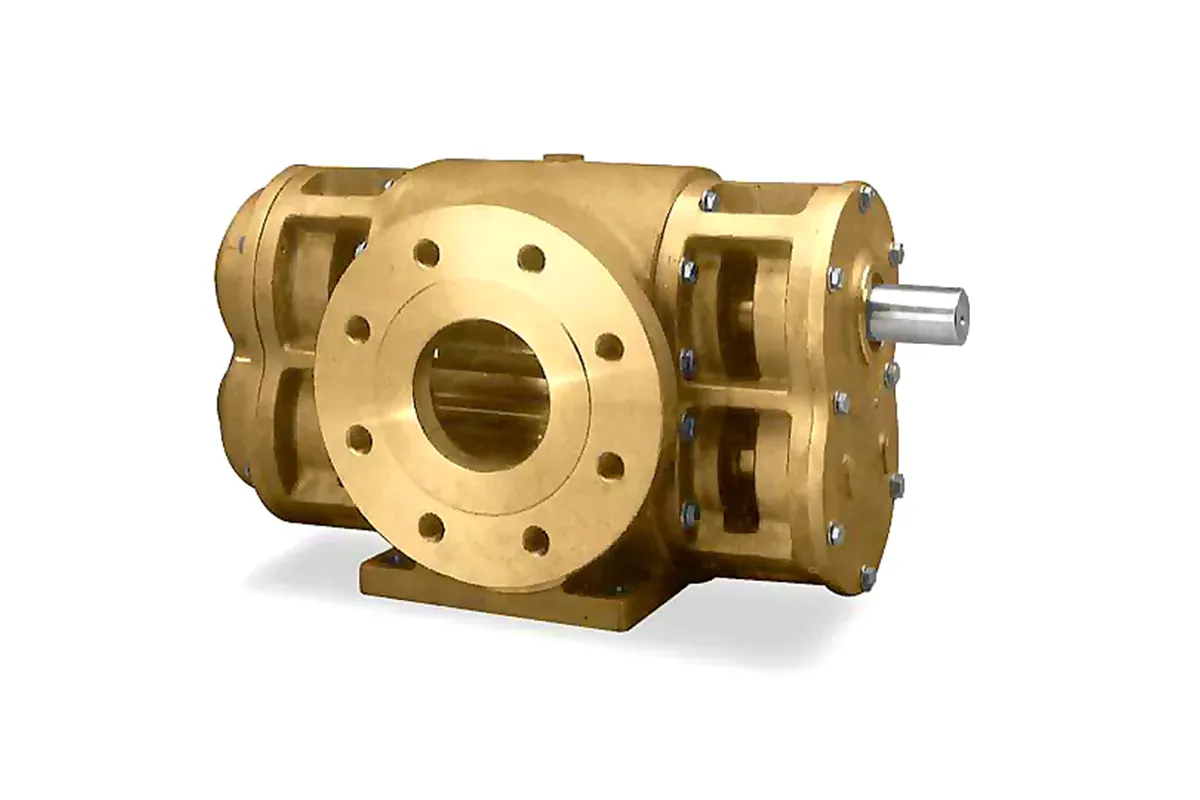

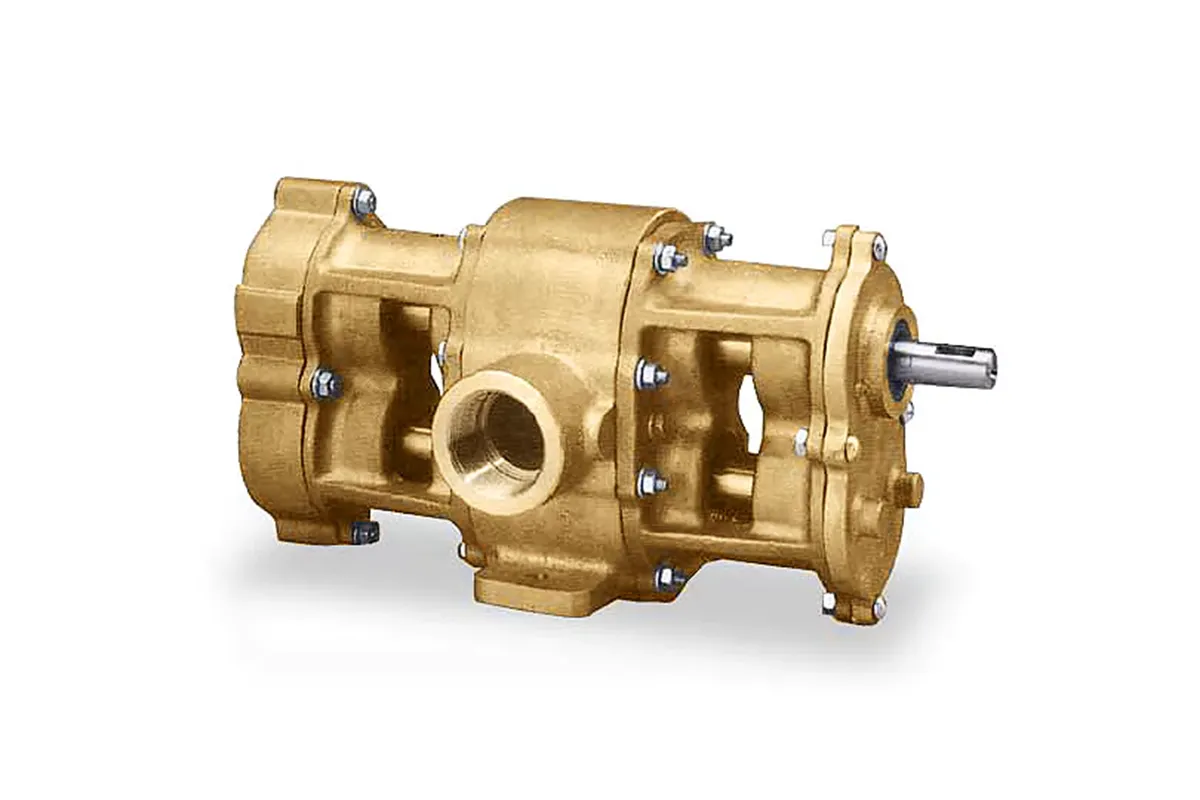

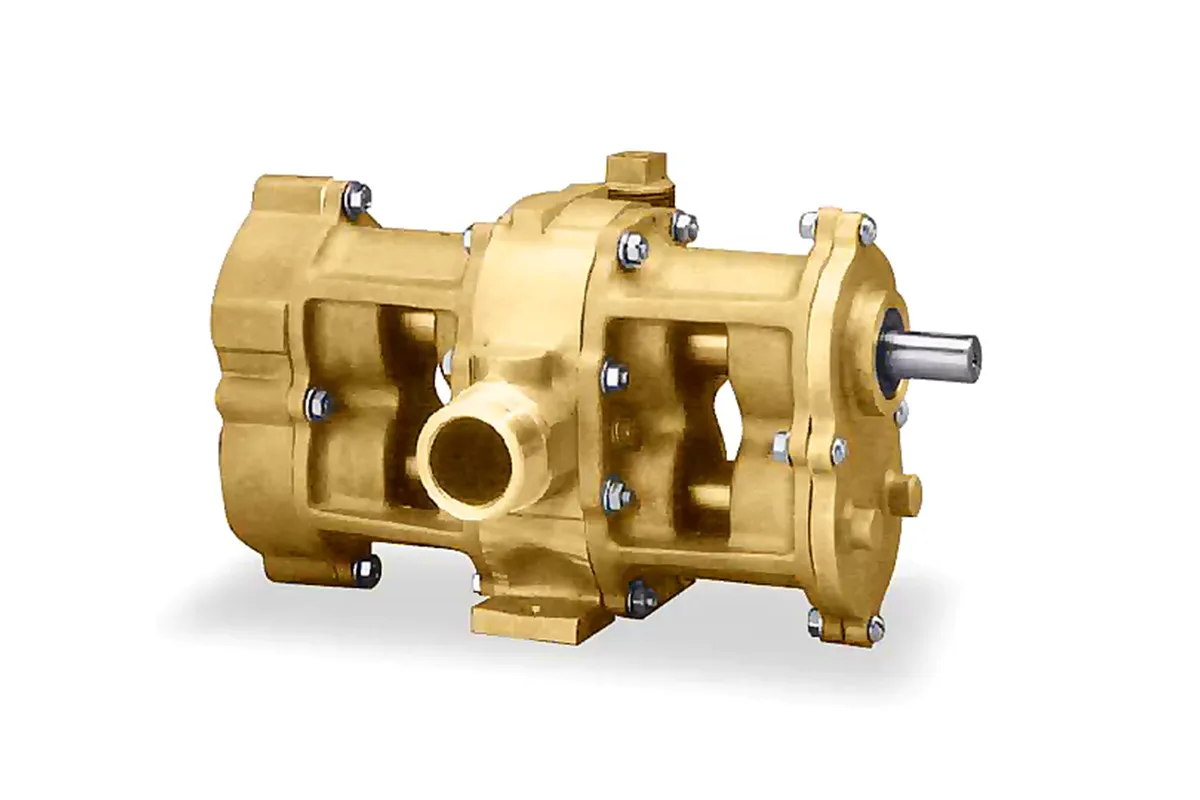

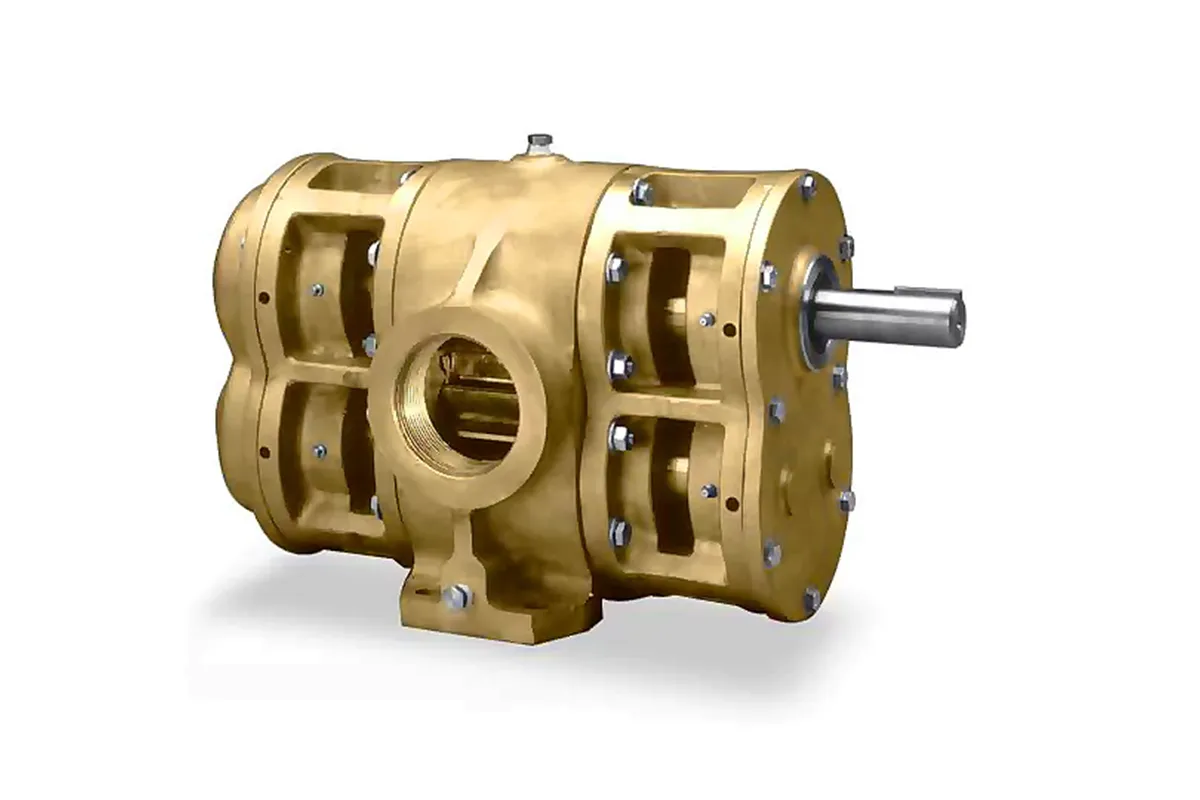

Aurora® is the maker of Edwards® gear pumps. These fire pumps ensure the robust reliability needed by firefighting applications.
How Edwards Gear Pumps Work
The Edwards gear pump develops flow by carrying fluid between the teeth of two meshed gears. One gear is driven by the drive shaft and turns the other. The pumping chambers formed between the gear teeth are enclosed by the pump’s housing and the side plates.
A partial vacuum is created at the inlet as the gear teeth unmesh. Fluid flows in to fill the space and is carried around the outside of the gears. As the teeth mesh again at the outlet, the fluid is forced out. High pressure at the pump’s outlet imposes an unbalanced load on the gears and their bearing support structure.
Features & Benefits
- Perfectly timed rotors synchronised by timing gears, making it physically impossible for rotors to clash against each other
- Casing liners minimise corrosion, wear, and tear, extending pump lifespan
- Shafts are supported on both ends by bearings, not bushings, for added reliability
- Pump drive flexibility to suit different operating conditions
- Dry running capability
- Rugged bronze construction – resists corrosion and provides many years of service
- Inexpensive repair and maintenance
- Flexible – adapts to existing or new drive equipment
- Self-priming
Available Options
- Pump skids
- Electrical apparatus with controls
- Electric, diesel engine or water turbine drive
- Hydraulic drive belt
- Flanges
- Spare parts
Applications
Edwards gear pumps are designed mainly for fire protection:
- Fire-fighting foam concentrate pumps
- Water mist pumps
- UL-listed/FM-approved and non-listed systems
- Stationary or mobile system
These pumps handle fluids such as:
- Special chemical compounds
- Thin viscosity fluids
- Black liquor soap
- Non-lubricating fluids
- Polymer
- Starch
- Seawater or brine
- Additives
Edwards pumps serve industries including:
- Pulp and paper
- Petro/chemical processing
- Food processing (non-sanitary)
- Marine uses
- General Industrial
- Mining
- Oil field
Range
- Model 20
- Model 80
- Model 150
- Model 160
- Model 300
- Model 400
