Oberdorfer™
Oberdorfer™ Pumps has been making world-class quality industrial pumps since 1890. Starting by designing and manufacturing bronze gear pumps, Oberdorfer has since become the leader in pump innovation and extended its product portfolio with centrifugal pumps, flexible impeller pumps, and CHEMSTEEL™ pumps that are available in different materials to match almost any application.
Every pump undergoes rigorous manufacturing processes to ensure that all units meet industrial standards. Constructed and assembled in a state-of-the-art facility, Oberdorfer’s reputation as one of the best makers of industrial pumps cannot be refuted.
PRINCIPLE OF OPERATION
A gear pump develops flow by carrying fluid between the teeth of two meshed gears. One gear is driven by the drive shaft and turns the other. The pumping chambers formed between the gear teeth are enclosed by the pump’s housing and the side plates.
A partial vacuum is created at the inlet as the gear teeth unmesh. Fluid flows in to fill the space and is carried around the outside of the gears. As the teeth mesh again at the outlet, the fluid is forced out. High pressure at the pump’s outlet imposes an unbalanced load on the gears and their bearing support structure.
Features & Benefits
- Compact with minimal moving parts
- Top-class quality metal construction
- Reliable solution for highly viscous and harsh fluids
- Special seals for leak and gasket problem prevention
- Rugged gears and bearings
- Self-priming, good suction/dry lift capability
Available Options
- Gear and bearing options
- Seal options
- Accessories
- Spare parts
- Base plate/mounting
Key Specifications
- Flows to 39.75 m3/h
- Pressures to 20.68 bar
- Suction lift to 20 ft
- Temperatures to 450 F
Applications
- General Industry
- Wastewater Effluent
- Sampling
- Welding Coolant Transfer
- Building Air Filtration
- Agriculture
- Pesticide Spraying
- Herbicide Spraying
- Boating
- Marine engine applications
- Oil and Gas
- Crude oil transfer
- Oil line heating
- Diesel
- Transportation
- Deicing
- Aircraft blue water supply
- Dust control
Range

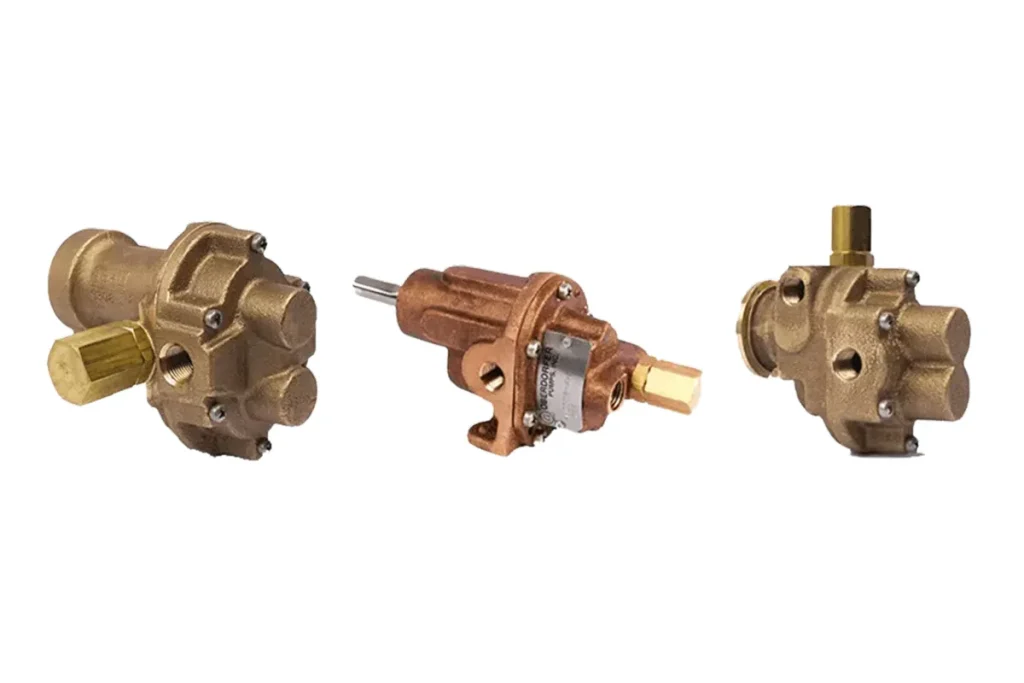

- Bronze Gear Pump

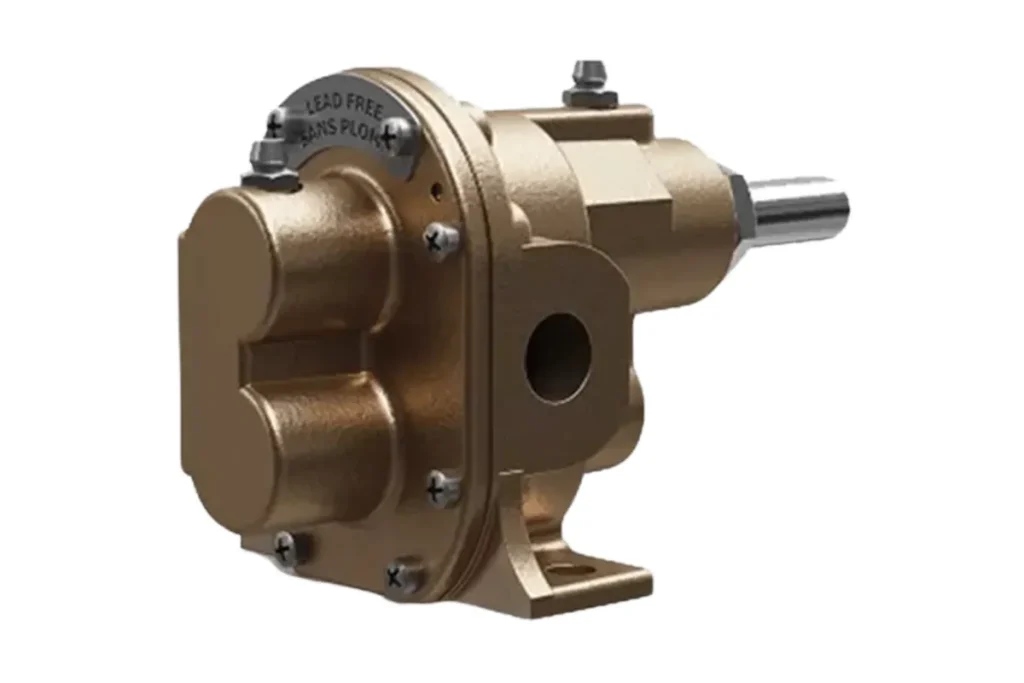

175 GPM - Filter Press Gear Pumps
23.33 GPM - CHEMSTEEL™ Gear Pump

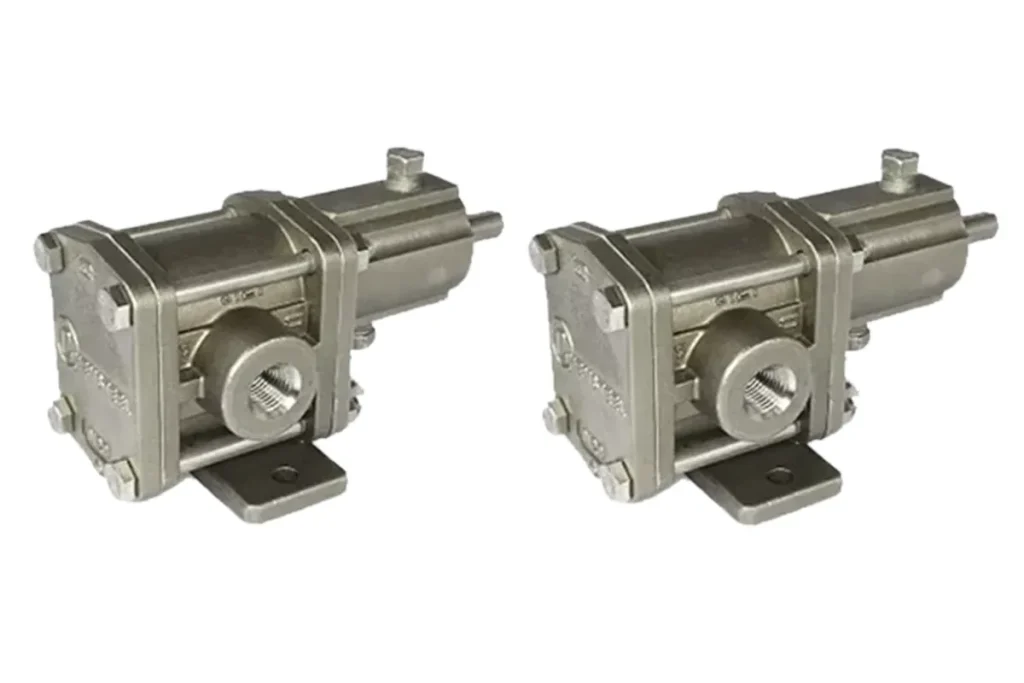

3 GPM - Hastelloy Gear Pump
30 GPM
