KDP
KDP is a top-rated manufacturer of mechanical diaphragm pumps. Almost every industry in Australia relies on KDP’s technology for their fluid transfer needs. Following this demand, KDP remains dedicated to the continuous development of the most complete line of diaphragm pumps available in the market today. They offer the best product at an affordable price range so that every sector can take advantage of their pump solutions. KDP has a mechanical diaphragm pump for all fluid-handling applications.
A KDP mechanical diaphragm pump can be used in wastewater treatment, mining, oil and gas, food and beverage processing, chemicals, pharmaceuticals and many more.

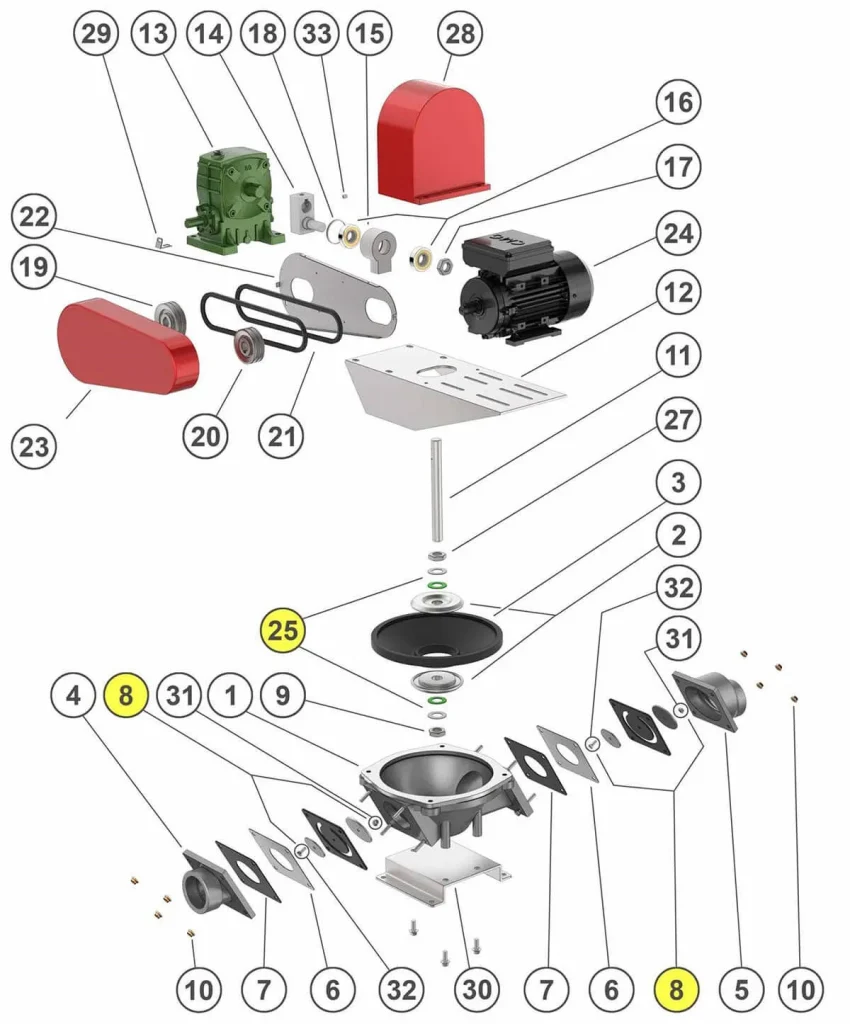

- Aluminium Bowl
- Diaphragm plate
- Nitrile diaphragm
- Aluminium suction port
- Aluminium discharge port
- Stainless steel valve seat
- Nitrile valve seat gasket
- Nitrile flap valve (kit)
- Diaphragm plate bolt
- Suction port
- Connecting rod
- Drive support housing
- Worm gear speed reducer – (Ratio 30:1)
- Eccentric block
- Eccentric bearing housing
- Bearing – 6305
- Eccentric bolt & washer
- Circlip
- Gearbox pulley
- Motor pulley
- V-Belt
- Pulley guard backplate – SS 304
- Pulley guard – Plastic
- Electric motor
- Nitrile O-Ring
- Connecting rod nut
- Eccentric guard – Plastic
- Pulley guard backplate support bracket
- Baseplate – Mild steel – Galvanised
- Flanged hex nut
- Hex head bolt
- Grub screw
Features & Benefits
- Improved Buna-N diaphragms
- Higher suction lift
- Sydney Water-approved for use with oil water separators
- Safe to dry run without failures and damages
- Operates on snore
- Handles abrasive liquids efficiently
Available Options
- Carry frame option

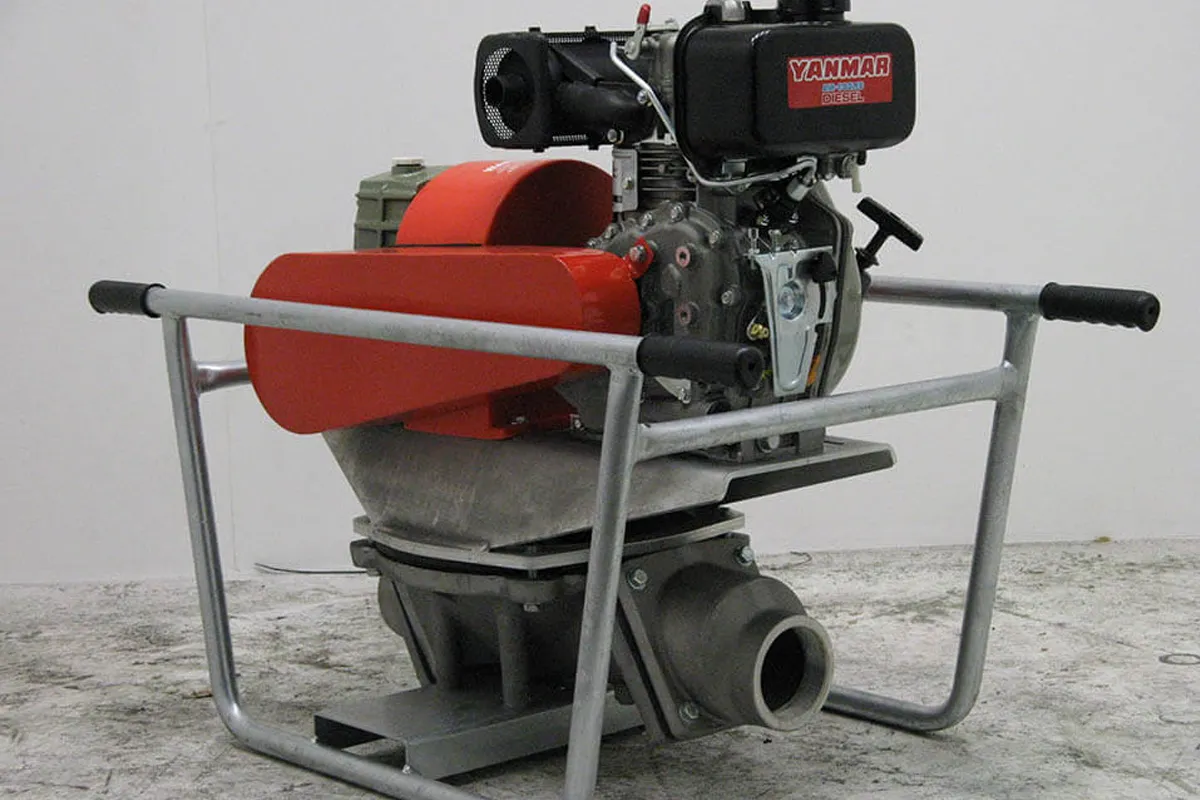

- Drive options – Electric motor, petrol, diesel
- Mounting options
- Spare parts
Key Specifications
- Nominal flow rate 16 LPM to 210 LPM (liters per minute)
- Nominal flow rate up to 12.6 m3/h
- Suction lift up to 7.5 metres
- Discharge head 6 metres
- Solid size 15mm to 50 mm (depending on KDP model)
Principle of Operation
Positive Displacement Pump
KDP Diaphragm Pumps fall under the positive displacement pump classification. They utilize two flexible diaphragms that reciprocate back and forth, creating a temporary chamber, which both draws in and expels fluid through the pump.
Each diaphragm is placed in a separate chamber. When one of the diaphragms moves up, the volume of the chamber with the diaphragm up increases. Pressure decreases in this chamber and fluid is drawn in. Next, the diaphragm moves down, causing decreased volume. The Fluid that was previously drawn in will now be forced out. The other chamber follows the same cycle but the second diaphragm moves up alternately with the first diaphragm. This now creates flow.
Applications
- Dewatering excavation
- Raw sewage
- Pool maintenance and construction
- Waste treatment plants
- Oil skimming
- Bore desludging
- Oil Water separators
- Machine sumps
- Priming large centrifugal pumps
- Industrial wastes
- Liquid manure
- Septic tank cleaning
- Drum emptying
- Abattoirs and poultry processing
- Spillage mop up
Range
- KDP 25
6.6 GPM | 0.37kW - KDP 32
8.7 GPM | 0.37kW - KDP 38
13.2 GPM | 0.75 kW - KDP 50
26.4 GPM | 1.1 kW - KDP 76
55.5 GPM | 1.5 kW
