Inoxpa
Inoxpa is a pump manufacturer renowned for its world-class fluid transfer technologies. Since its beginnings in 1972, Inoxpa has continually been putting serious efforts into satisfying customers in the dairy, food and beverage, cosmetics, and pharmaceutical markets with custom-tailored pumps. Today, it has a strong presence in 15 countries on over five continents.
Inoxpa offers a wide range of positive displacement and centrifugal pumps where sanitation is a crucial design parameter. The company achieved its ISO 9001 certification in 1996, and all industrial pumps in its portfolio comply with the CE and A3 Sanitary Standards.
RV Helicoidal Impeller Pump
The Inoxpa RV is a range of close-coupled centrifugal pumps fitted with a helicoidal impeller. They boast high efficiencies going over 70 per cent, veryhigh considering their semi open impeller. The pumps incorporate a compact design, high capacity, low shear and gentle action, making them perfect for food & beverage applications.
They are commonly used as a wine or beerwort pump, but are also suited for passing large soft solids.
- Space-saving close-coupled design
- Helicoidal impeller ensures gentle pumping without clogging
- Pump casing with volute and drain port
- High efficiency and low power consumption
- Silicon carbide stationary and rotary parts
- Passes solids up to 75 mm in diameter
Options
- Remote Start and
- Variable Speed Controller
- Adjustable Legs or Trolley
- Configuration
- Pump port fitting/connection options
- Spare parts

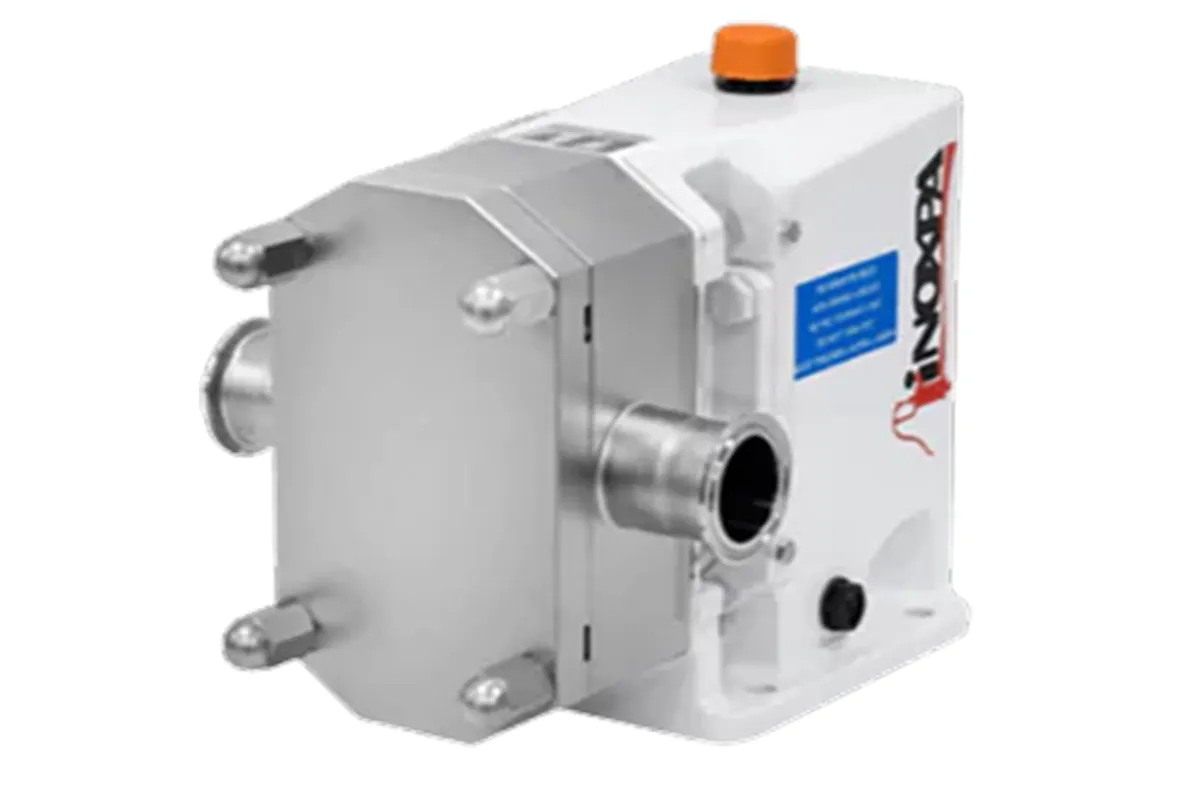

SLR Sanitary Rotary Lobe Pump
The SLR rotary lobe pumps have exceptional hygienic characteristics and are suitable for pumping medium to high-viscosity products. Liquids containing sensitive solids can be pumped through the special shape of the rotors without damaging the product. In addition to handling all kinds of fluid, these pumps are also suitable for filtering and bottling applications.
The SLR pumps comply to the 3-A Sanitary Standards.
- Rugged cast stainless steel pump casing and cover
- Low-pulsation tri-lobe rotors
- Balanced single mechanical seal
- Vertical and horizontal configurations
- Service and maintenance-friendly
Options
- Mechanical seal material and flushing
- Relief valve
- Bi-wing lobes for solid handling
- Heating Jackets
- Gearbox Drive Options
- ATEX certification
- Mounting on Trolley or Baseplate
- Spare parts

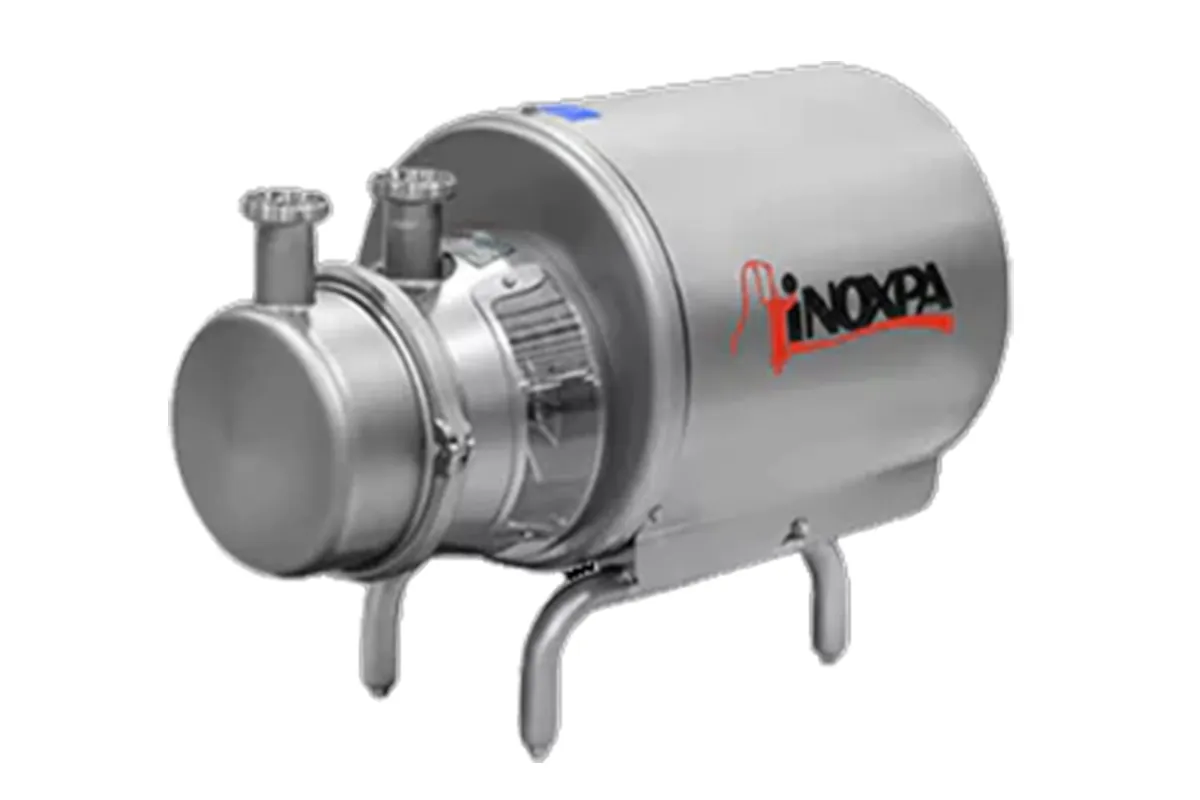

Prolac HCP
Inoxpa’s PROLAC HCP range of centrifugal pumps meets stringent hygienic requirements, conforming to the 3-A Sanitary Standards. These pumps can also operate at high pressures of up to 16 bar on the suction side, withstand chemical agents, and handle sensitive products.
PROLAC HCP are ideal for applications requiring a high level of hygiene and are used as the main process pumps in the beverage, dairy, cosmetics, and pharmaceutical industries.
- One-piece machined pump casing
- DIN or BSM connections as a standard in all models
- Semi-open impeller for easy cleaning and efficient solid handling
- Special hygienic, balanced mechanical seal
Options
- Drain port on casing
- Heating chamber on casing
- Pump fitting/connections
- Mechanical seal material
- Double mechanical seal
- FPM or FFKM gasket
- Motor options
- Trolley and/or control panel
- ATEX certification
- Spare parts
KIBER KSF Progressive Cavity Pump
The Inoxpa KSF Series is a collection of food-grade progressive cavity pumps. They create a suction lift of up to 7 meters and can efficiently pump low to high-viscosity products and fluids containing soft solids. Their design makes them self-priming and the flow reversible.
The KSF progressive cavity pumps are ideal for transporting beverages, concentrates, edible oils, and wines. Their working principle makes them a preferred type for handling viscous food products like jam, marmalade, and melted cheese. In the cosmetics industry, the KSF pumps are extra helpful in the transfer of liquid soap, gels, and creams.
- Close-coupled design and directly coupled to the drive
- Low pulse, gentle pumping action
- Open transmission, hygienic design
- Stainless steel AISI 316L wetted parts
- Single internal mechanical seal complies with FDA and EC
- 1935/2004
- Excentric outlet
Options
- Single flushed mechanical seal (Quench).
- Mechanical seal: SiC/SiC.
- Gland packing.
- Stators: white EPDM and black NBR.
- Gaskets: EPDM.
- Other types of connections.
- Heavy-duty transmission.
- Fixed transmission.
- Pump casing with heating jacket.
- Stainless steel trolley.
- Electrical control panel.
- Bypass pressure relief valve.
- Cleaning port (CIP).
- ATEX certification.
- Mounting/baseplate
- Spare parts
ASPIR Side Channel Pump
The Inoxpa ASPIR pumps are self-priming, sanitary side-channel units suitable for the food-processing, pharmaceutical and chemical industries. They are known for their outstanding gas-handling capabilities, allowing for the smooth transfer of liquids with up to 50% air or gas content.
While the primary function of these pumps is for CIP return, they can also be used in wine, oil, syrups, and volatile products, as well as fluids with temperatures close to boiling point.
- Casing manufactured with cold-formed plat
- Stainless steel investment casting inlet body and venture
- Investment casting, star-shaped floating impeller
- External mechanical seal minimizes contact with pumped fluid
- Robust stainless steel-cast lantern
- IEC B34 motors, IP 55, F-class insulation
Options
- Heavy-duty impeller
- Mechanical seal materials
- Gaskets
- Pump fitting/connection
- Bypass
- ATEX Certification
- Spare parts

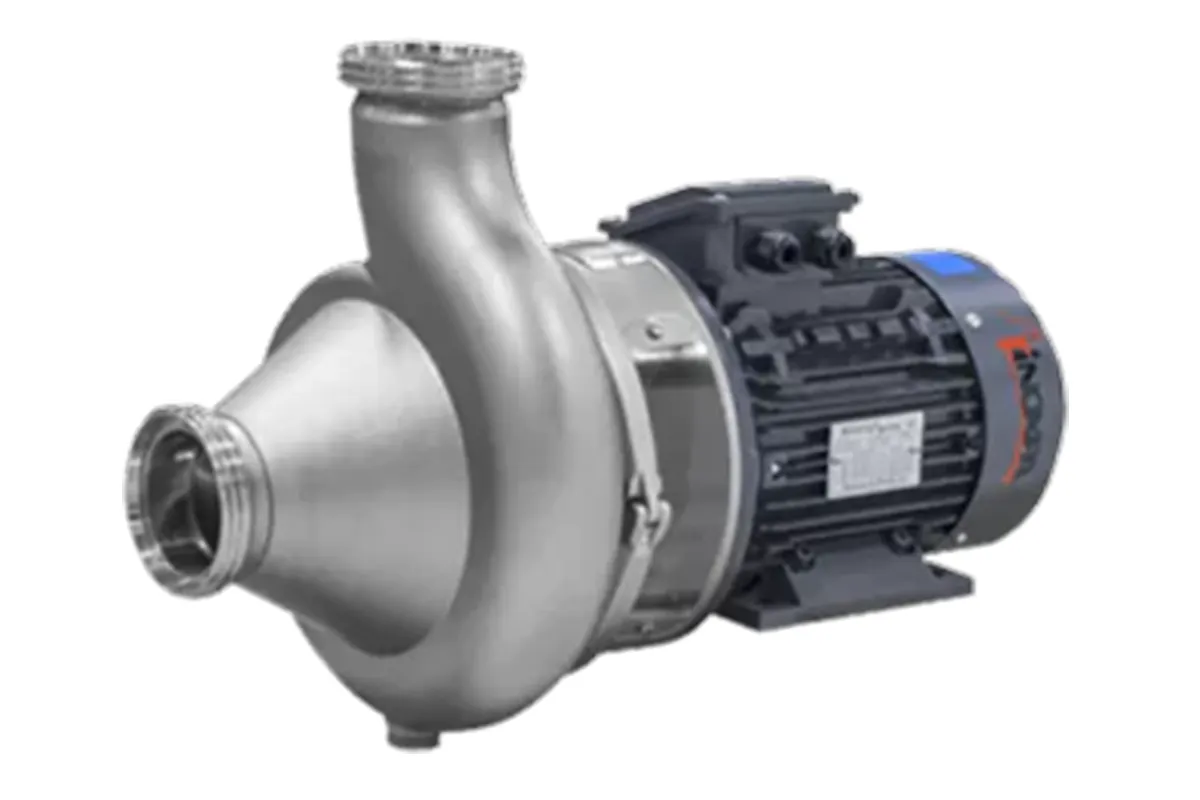

HYGINOX SE Centrifugal Pump
The Hyginox SE range of close-coupled centrifugal pumps from Inoxpa has a cost-effective and hygienic design. Made of cold-formed stainless-steel casing, these pumps are ideal for the food and beverage industry, mainly for transferring liquids. Additionally, these pumps are also used in the pharmaceutical and cosmetic industries.
Hyginox SE pumps’ motors are fully compliant with the IEC standards and feature height-adjustable, hygienically designed legs.
- Cold-form stainless steel casing
- Stainless steel, investment casting open impeller
- Mechanical seal according to DIN 24960 L1K
- AISI 304 motor shroud
- Certified according to 3A sanitary standards
- IEC B34 motors, IP 55, F-class insulation
Options
- Mechanical seal material
Gaskets - Pump fitting/connections
- Motors with additional protective features
- Trolley and/or electric panel
- Spare parts
