Global Pump
Global Pump was founded by Mersino Dewatering in 1997 with the goal of developing dependable, economical, and highly efficient submersible dewatering pumps and pump packages. The company’s product portfolio consists of electric and diesel-driven enclose impeller pumps that boast exceptional design and superior components, ensuring users receive the very best quality product for their investment.
Pumps are available in a variety of sizes and configurations, providing industries with tailored-fit solutions.
General Dewatering
Various industries are faced with the challenges of continuous water management on sites. From the facility’s construction to operation, industrial applications deal with so much water during processing, cleaning, emission control, and flood control. Undesired water in an industrial site can lead to safety risks, increased costs and project delays. It is then critical for any industry to use the right technique to control, manage, and remove water. This becomes even more important as the geology and hydrology will vary from location to location and from industry to industry.
There are a variety of pumps used for dewatering any industrial site: submersible pumps, self-priming pumps, borehole pumps, etc., but the pump choice always depends on the job conditions.
Range
Leading Dewatering Solutions and Professional Support
Global Pump manufactures heavy-duty submersible pumps for tackling the most demanding dewatering applications in the mine, construction, and other industrial sites.
All-Pumps has a complete range of Global Pump submersible models and styles to meet your business needs. With these durable dewatering pumps, you’ll spend less time and money on maintenance and repairs, freeing up resources to focus on your core operations.
Whether you are looking for a new submersible dewatering pump or need to replace an old one, we have the solution that fits your needs.
Dredging/Slurry/Solid Electric Dewatering Pumps
Global Pump offers submersible dewatering pumps for high-volume and high-pressure dewatering duties.
These leading-edge, portable submersible pumps are made with wear-resistant materials to efficiently handle corrosive and abrasive fluids found in mines, quarries, and surface and underground construction sites.
Features & Benefits
- Maximum corrosion resistance using stainless steel strainer, shaft, impeller, outlet and hardware
- Mechanical seals in enclosed pressure-compensated oil chamber for longer life
- Nitride-hardened 410 stainless steel impeller for abrasion resistance
- Tandem tungsten carbide/tungsten carbide and tungsten carbide/tungsten carbide mechanical seals double service life
- Field adjustable nitrile rubber-lined diffuser/wear plate for optimised efficiency
- Sacrificial zinc anodes maximise life in saline fluid environment
Available Options
- Impeller materials include 316 SSt for seawater and corrosive applications
- Complete 316 SSt construction available with silicon carbide/silicon carbide mechanical seals and viton elastomers
- Automatic ON/OFF/ON thermal overloads embedded in stator winding
- Polyurethane diffusers and wear plates
Spare parts
Specs
- Flow: Up to 511 m3/h
- Head: Up to 46 m
- Power: Up to 43 kW
Principle of Operation
Global Pump submersible dewatering pumps are centrifugal in type and are used to remove water collected in construction sites, tunnels, and mines. They suck the dirty water – which is circulated in the casing by the impeller and later discharged to a wellpoint system or open sump. Depending on the type of water, a dewatering pump may use strainers to remove abrasives from the groundwater before being processed. A dewatering sludge pump, on the other hand, is used for moving thick, viscous fluids.
Global Pump Submersible Trash Pump
Global Pump submersible trash pumps are ideal for corrosive and abrasive applications, as well as for low flow, high head applications. These portable electric pumps can be configured for installation in stationary wet pits (P-type) and mobile wet pits (S-type). They are designed to transfer water with soft to hard solids such as mud, leaves, twigs, sand, and sludge without clogging and damaging.
They are heavy-duty centrifugal pumps that feature deeper impeller vanes and larger discharge openings than other pumps. Global Pump trash pumps are available in different sizes from 4″ to 8″ and can achieve head up to 23.5 metres and flow up to 568 m3/h.
Features & Benefits
- Run by high-efficiency 4-pole induction continuous rated motor with squirrel cage rotor
- Ball bearings enclosed with high-temperature grease containing special anti-corrosion additive
- Self-priming pumps are designed to create and maintain a vacuum level that is sufficient to draw fluid into the inlet without external assistance.
- 5 times higher wear, corrosion, heat resistance with dual mechanical seal with silicon carbide faces
Available Options
- Spare parts
Specs
- Flow: Up to 568 m3/h
- Head: Up to 24 m
- Size: Up to 8”
- Power: Up to 26 kW
Principle of Operation
A trash pump has a rotating engine that powers a shaft that spins. Attached to the shaft is an impeller. As the impeller spins, the water is collected and pushed through the discharge line. Most trash pumps have an open or semi-open impeller design to allow solids such as rocks and twigs to pass through.
Global Pump Submersible Dewatering Pumps
Global Pump offers submersible dewatering pumps for high-volume and high-pressure dewatering duties.
These leading-edge, portable submersible pumps are made with wear-resistant materials to efficiently handle corrosive and abrasive fluids found in mines, quarries, and surface and underground construction sites.
Features & Benefits
- Maximum corrosion resistance using stainless steel strainer, shaft, impeller, outlet and hardware
- Mechanical seals in enclosed pressure-compensated oil chamber for longer life
- Nitride-hardened 410 stainless steel impeller for abrasion resistance
- Tandem tungsten carbide/tungsten carbide and tungsten carbide/tungsten carbide mechanical seals double service life
- Field adjustable nitrile rubber-lined diffuser/wear plate for optimised efficiency
- Sacrificial zinc anodes maximise life in saline fluid environment
Available Options
- Impeller materials include 316 SSt for seawater and corrosive applications
- Complete 316 SSt construction available with silicon carbide/silicon carbide mechanical seals and viton elastomers
- Automatic ON/OFF/ON thermal overloads embedded in stator winding
- Polyurethane diffusers and wear plates
Spare parts
Specs
- Flow: Up to 511 m3/h
- Head: Up to 46 m
- Power: Up to 43 kW
Principle of Operation
Global Pump submersible dewatering pumps are centrifugal in type and are used to remove water collected in construction sites, tunnels, and mines. They suck the dirty water – which is circulated in the casing by the impeller and later discharged to a wellpoint system or open sump. Depending on the type of water, a dewatering pump may use strainers to remove abrasives from the groundwater before being processed. A dewatering sludge pump, on the other hand, is used for moving thick, viscous fluids.
Mining/Quarry Solutions
Mining processes almost always produce wastewater, often contaminated with solids and chemicals. This wastewater needs further treatment to ensure the process is efficient, and so a highly reliable pump is required.
Many mining and quarrying processes produce huge quantities of wastewater that must be transported to approved sites. This wastewater is often contaminated with solids and chemicals, thus, a dewatering pump that can handle abrasives, irregular particles, and corrosive fluids is needed. Submersible pumps and large pump packages play are vital in controlling water in mine sites and preventing floods that may slow down operations or endanger workers.

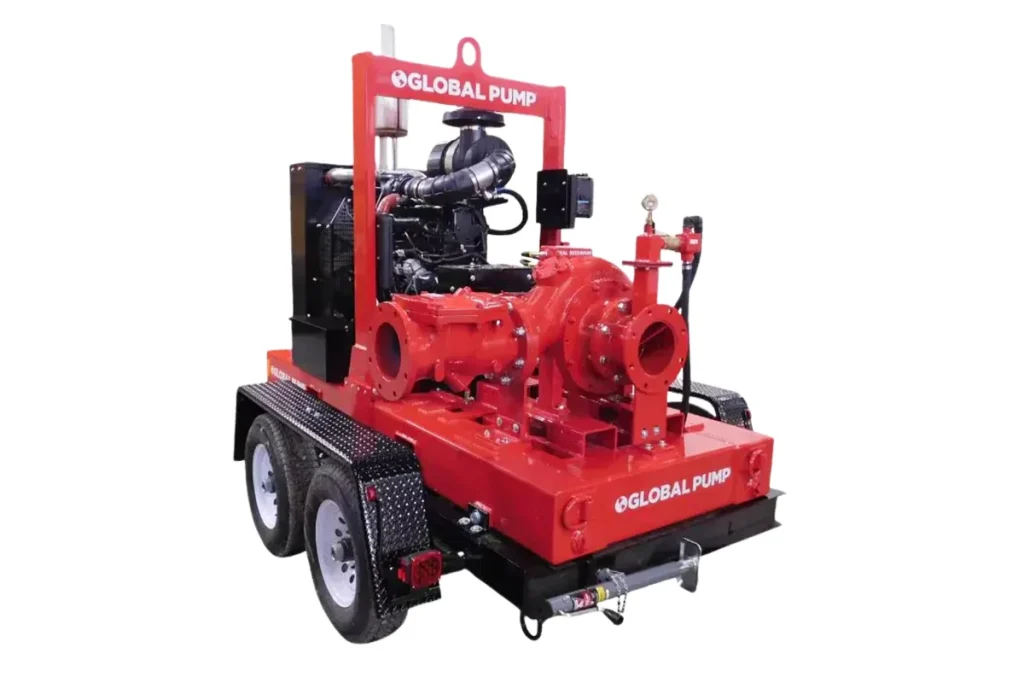

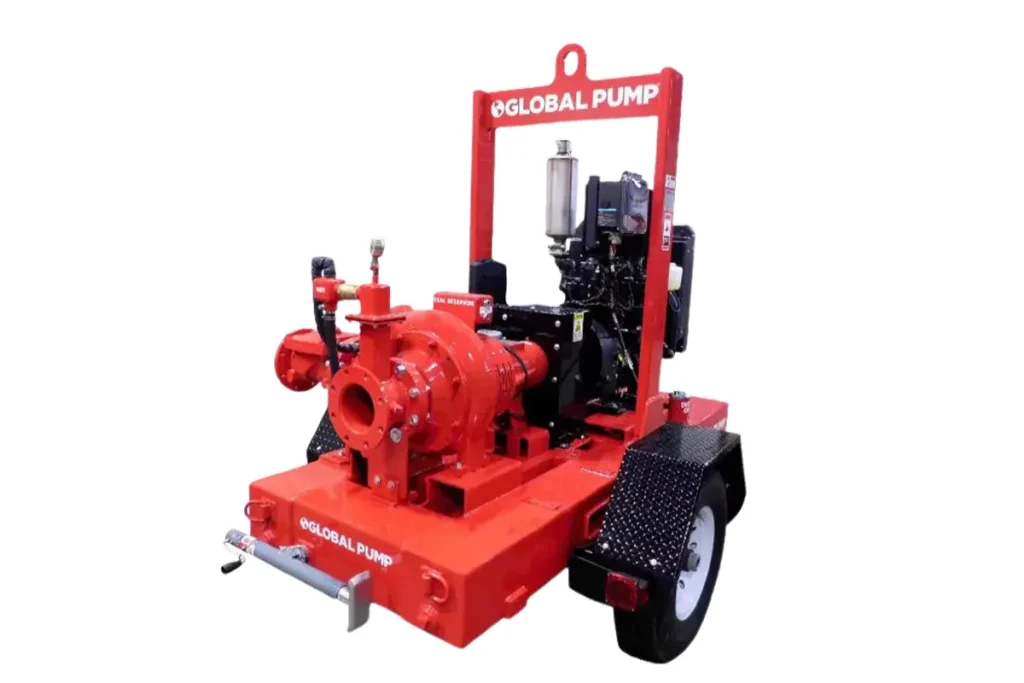

Global Pump Trash Pump Series Range
Global Pump’s Trash Pump Series is engineered to operate in variable and harsh environments while maintaining efficiency at high volume flow. These skid-mounted trash pump systems and cart pumps use enclosed impellers and can handle solids with sizes up to 114 mm (4.5 inches) and debris in the mines.
Each unit is powered by a water-cooled 4-6 cylinder diesel engine and features a non-return valve that allows full flow with minimal restriction. Made with robust materials, they run continuously without much maintenance.
Leading Mining Dewatering Solutions and Professional Support
From slurries to mine water, Global Pump offers durable dewatering pumps. They are engineered to pump water and slurries within mine dewatering, mill scale pumping, tailings disposal, pond water return, and various sump applications.
By purchasing Global Pump submersible and skid/trolley-mounted dewatering pumps from All-Pumps, our customers also gain access to our maintenance and repair services, including rapid response to crisis situations and an extensive stock of spare parts.
Features & Benefits
- Maximum corrosion resistance using stainless steel strainer, shaft, impeller, outlet and hardware
- Mechanical seals in enclosed pressure-compensated oil chamber for longer life
- Nitride-hardened 410 stainless steel impeller for abrasion resistance
- Tandem tungsten carbide/tungsten carbide and tungsten carbide/tungsten carbide mechanical seals double service life
- Field adjustable nitrile rubber-lined diffuser/wear plate for optimised efficiency
- Sacrificial zinc anodes maximise life in saline fluid environment
Available Options
- Impeller materials include 316 SSt for seawater and corrosive applications
- Complete 316 SSt construction available with silicon carbide/silicon carbide mechanical seals and viton elastomers
- Automatic ON/OFF/ON thermal overloads embedded in stator winding
- Polyurethane diffusers and wear plates
- Spare parts
Key Specifications
- Flow: Up to 511 m3/h
- Head: Up to 46 m
- Power: Up to 43 kW
Applications
- Corrosive and abrasive applications
- High volume, low head applications
- Dewatering in mines, quarries, tunnels, construction sites
Construction Solutions
Waterlogging is often encountered during construction. The use of water in cleaning heavy equipment and excavation also adds to the build-up of water in construction sites. This water build-up obstructs construction work, and the foundation can fail when water isn’t properly managed. This makes dewatering important in any construction work.
Dewatering a construction site involves methods like wellpoint dewatering, deep well dewatering, educator dewatering, and sump pumping. A dewatering pump will suck up the undesired water collected on the site and transfer it to another location.
High Head Series Range
Leading Construction Dewatering Solutions and Professional Support
Global Pump submersible pumps and high-head dewatering pump sets are designed to handle the demanding requirements of the construction sector. With excellent corrosion resistance and long working life, we have supplied these dewatering solutions to countless construction sites across Australia. Our customers also benefit from the relentless testing of our products in every possible condition, enabling us to ensure you choose the most suitable and cost-effective pump for the job.
Global Pump’s High Head Series offers a dependable solution for trapped water, sewage, and dirty groundwater transfer in the construction sector. The skid-mounted dewatering pump systems and trailer pump sets in this range can carry sediment to distant disposal locations by pumping dense slurries across great distances up to 228 metres.
Each unit is powered by a water-cooled 4-6 cylinder diesel engine and features a non-return valve that allows full flow with minimal restriction.
Global Standard High Head
- FLOW: UP TO 1022 M3/H
- HEAD: UP TO 84 M
- DISCHARGE DISTANCE: UP TO 1000 M
Global High Performance High Head
- FLOW: UP TO 1022 M3/H
- HEAD: UP TO 84 M
- DISCHARGE DISTANCE: UP TO 1000 M

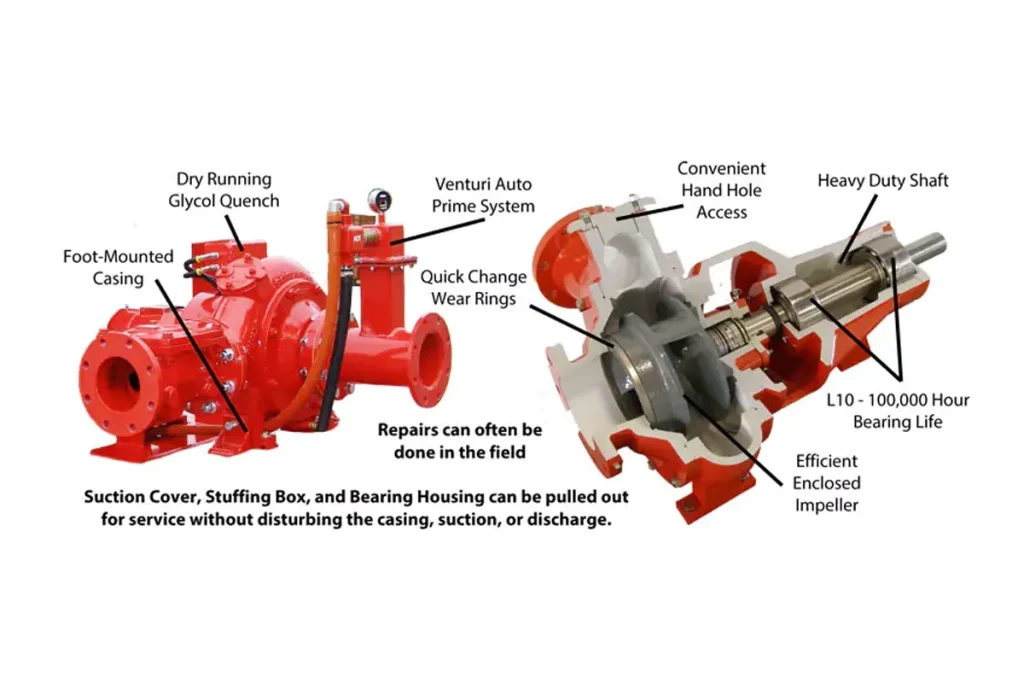

Features & Benefits
- Engineered specifically for portable applications with skid and cart options
- Option to use Global Pump Auto Prime automatic priming system (compressor-fed venturi priming) or a diaphragm priming system for flexibility
- Dry running mechanical seal
Pump casings hydrostatically tested to 345 kPa, enduring above the peak casing design pressure - Standard engine control panel provides preset emergency shutdown protection
Available Options
- Fuel tanks for extended run times and/or remote location
- Skid mounted or highway trailer with integral fuel cell/chassis, lights, fenders, tie downs, lifting bail, front and rear jacks
- Optional CD4MCu stainless steel for abrasion and corrosion resistance
- Global Pump SoundGuard sound attenuated enclosure
- Hose racks, accessory containers and other custom features
- Wide range of suction and discharge fittings, including Global Pump’s own “QD” Quick
- Disconnect fittings and accessories
- Alternative drives, including other diesel engines or electric motor
- Spare parts
Key Specifications
- Flow: Up to 1806 m3/h
- Head: Up to 228 m
- Max Solids: Up to 63.5 mm
Applications
- Drainage and dewatering
- Excavation dewatering
- Groundwater lowering (drainage wells/wellpointing)
- Tunneling construction
- Building construction
- Dam drainage
- Bridges
- Sewage networks
- Pipelines
- Bypass
- Flood control
- Stormwater runoff
- Construction quarries
Underground Construction Dewatering
Underground construction or excavation of underground mine sites and tunnels involves complex dewatering systems. Volumes of water from the construction site need to be removed to stabilise the ground and prevent flooding of the work area.
Tunnel-boring machines and drilling equipment also require a reliable supply of cooling water, which must be recovered, extracted and treated after use, thereby needing many dewatering pumps on site.
Overview
Leading Underground Construction Dewatering Solutions and Professional Support
Global Pump is known for its underground construction dewatering pumps ranging from small submersible pumps with high-head specifications to larger units for large-volume dewatering applications. Diesel-driven Wellpoint pump packages on a skid or trolley are also available, giving contractors other dewatering options and making it easy to dewater different areas as their excavation advances.
We supply and service Global Pump dewatering pumps, ensuring operators maximum uptime and efficiency. We do on-site emergency repairs as well as in-workshop complete overhauls and have complete spare parts in stock to minimise downtime and get your pumps up and running in no time.

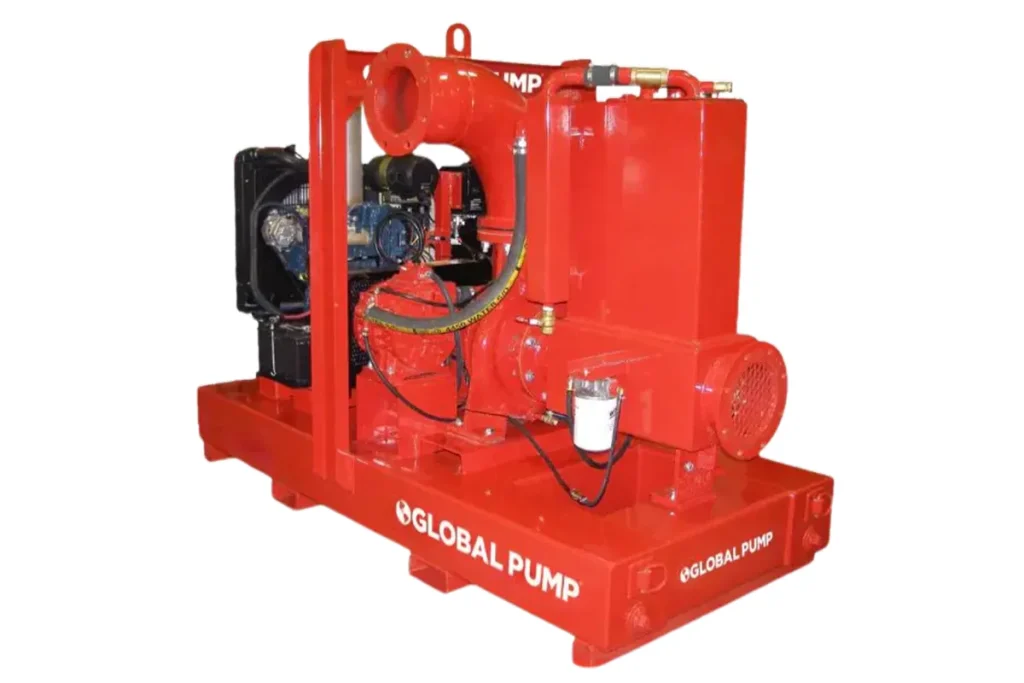

Global Standard Centrifugal (GSC) Wellpoint
Leading Underground Construction Dewatering Solutions and Professional Support
Global Pump is known for its underground construction dewatering pumps ranging from small submersible pumps with high-head specifications to larger units for large-volume dewatering applications. Diesel-driven Wellpoint pump packages on a skid or trolley are also available, giving contractors other dewatering options and making it easy to dewater different areas as their excavation advances.
We supply and service Global Pump dewatering pumps, ensuring operators maximum uptime and efficiency. We do on-site emergency repairs as well as in-workshop complete overhauls and have complete spare parts in stock to minimise downtime and get your pumps up and running in no time.
The right pump for the right job keeps you on top of construction completion schedules. Wellpoint dewatering is going to be there from start to finish. Once wellpoint dewatering starts, it has to stay in continuous operation until the construction project is completed. For this process, our customers request the Global Pump GSC Wellpoint pumps for their underdrain dewatering needs.
Features & Benefits
- Engineered specifically for portable applications with skid and cart options
- Belt-driven vacuum pump provides high air handling and a fully automatic priming system
- Fully guarded coupling, pulley and belting
- High-efficiency air separation tank separates air and water before entering the pump
- Condensation chamber with drain contains any condensation or water vapor from the air
- Oil recovery system separates and removes oil and other particulates from the discharge air
- Pump casings hydrostatically tested to 345 kPa, enduring above the peak casing design pressure
- Standard engine control panel provides preset emergency shutdown protection
- Standard skid-mounted format with integral fuel tank, tie downs, lifting bail and fork pockets
Available Options
- Fuel tanks for extended run times and/or remote location as required
- Highway trailer with integral fuel cell/chassis, lights, fenders, tie downs, lifting bail, front and rear jacks
- Trailer brakes can be offered as required
Sound attenuated enclosure options - Hose racks, accessory containers and other custom fabrication available as required
- Wide range of suction and discharge fittings available including Global’s own “QD” Quick
- Disconnect fittings and accessories
Key Specifications
- Flow: Up to 409 m3/h
- Head: Up to 33 m
- Max Solids: Up to 22.2 mm
Applications
- Construction site dewatering/wellpointing
