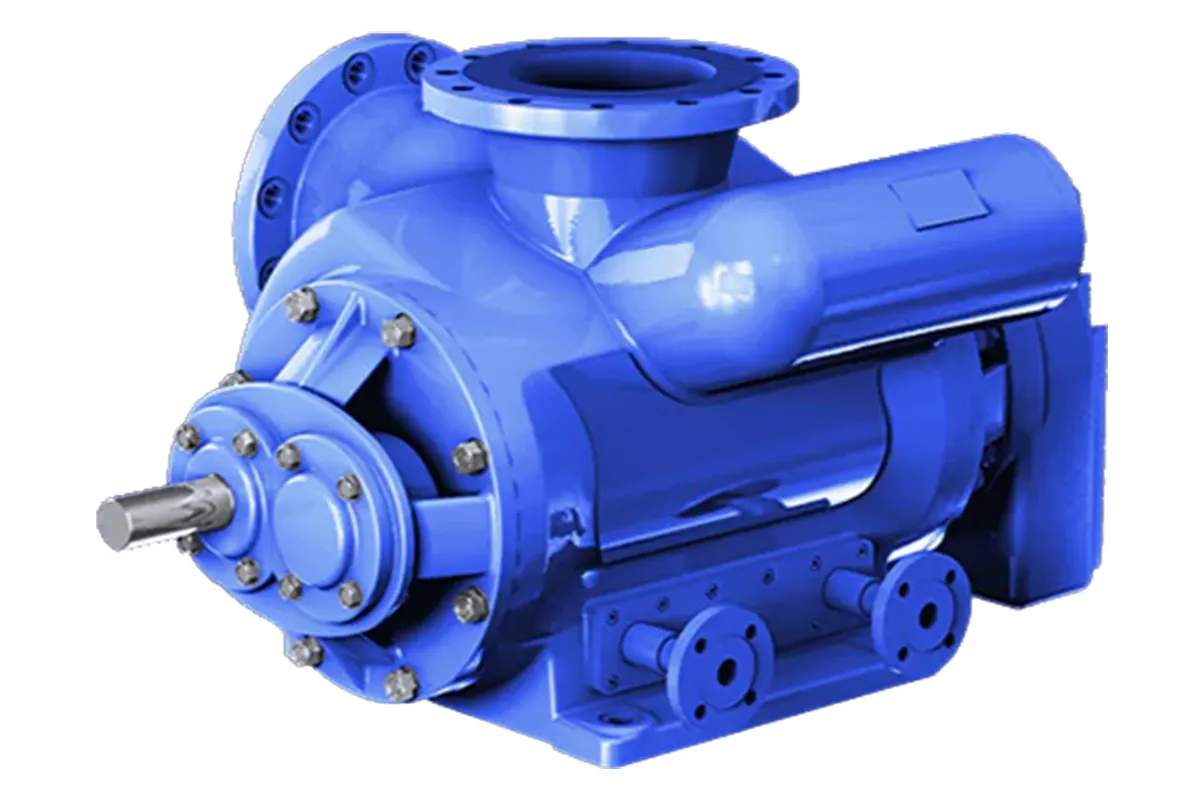

S Series Twin Screw Pumps
Blackmer’s S Series Twin Screw pumps are for transferring fluids free of solids or with minimal abrasiveness. These self-priming, double-ended positive displacement pumps work hard regardless of the pressure, temperature, or viscosity of the liquid they handle.
Ideal for chemical processing, general industrial duties, and transport and marine markets, the S Series is also available in various configurations for special transfer applications.
Features & Benefits
- Screw flanks with a unique profile and patented technology ensure high efficiency, pulse-free operation, continuation, and good NPSH values
- Double-array ball bearing offsets against balanced axial power
- Relief valve installation realises overload protection
- Relief valve installation realises overload protection
- Single mechanical seal lubricated by the pumped medium
- Separate construction between shaft and screw allows for a choice of materials
- Robust and reliable construction for longer life
Available Options
- Spare parts
- Mounting plates
Key Specifications
- Capacity: 0.5-2500 m³/h
- Pressure: 16-60 bar
- Viscosity: 0.5-200,000 mm²/s (cSt)
Applications
S SERIES TWIN SCREW PUMPS (WTG)
- Petroleum
- Marine
- Petrochemical
- Liquid terminals
- Refineries
- Food & beverage
- Chemical
- Lubricating oil
- Storage & transportation
S SERIES TWIN SCREW PUMPS (NTG)
- Asphalt
- Chemicals
- Heavy fuel oil
- Liquid terminals
- Petrochemical
- Lubricating oil
- Marine
S SERIES MULTI-PHASE TWIN SCREW PUMPS
- Crude oil
- Desert oilfield
- Beach-sea oilfield
- Offshore platform
- Wellhead
Principle of Operation
Blackmer Twin Screw Pumps are rotary, positive displacement pumps composed of two sets of opposed screws. These two counter-rotating screw rotors are engineered to rotate towards each other. This action traps the fluid between the screws of their rotors. As the screws turn, this trapped volume decreases, compressing the fluid and moving it towards the exhaust.
Range
- S Series Twin Screw Pumps with Timing Gear (WTG)
- S Series Twin Screw Pumps with Non-Timing Gear (NTG)
- S Series Multi-Phase Twin Screw Pumps

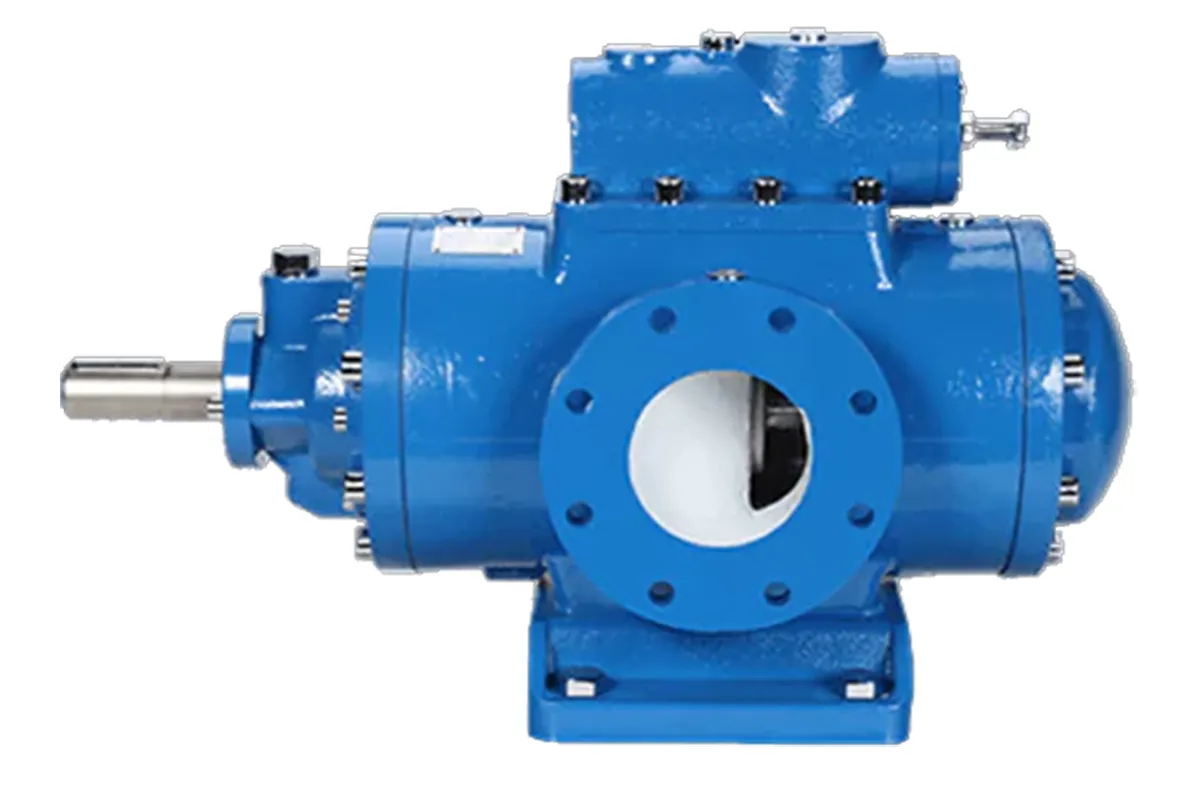

S Series Triple Screw Pumps
Features & Benefits
- Uniquely constructed pressure relief valve for pump and system safety
- Rigid parts translate to longer life and maintenance intervals resulting in increased uptime
- Strong self-priming capability, reversible pumping, high volumetric efficiency
- Smooth, pulse-free operation with extremely low noise and vibration
- Easy to install and maintain with compact size and construction
- Higher pressure boost and high energy efficient design
Available Options
- Bearing options
- Spare parts
- Mounting plates
Key Specifications
- Capacity: 2-2600 L/min
- Pressure: Up to 100 bar
- Viscosity: 3-5,000 mm²/s (cSt)
Applications
- Chemicals
- Adhesives
- Food and beverage
- Soap
- Petrochemicals
- Polymers
- Crude oil
- Asphalt
- Diesel
- Lube oil
- Kerosene
- Oilfields
- Residuals
- Bulk transfer
- Loading/unloading
- Terminals
- Shipping
Principle of Operation
The S Series Triple-Screw Pump consists of three rotating parts, a male drive spindle (driver screw) and two female secondary spindles (driven screws). As the driver screw starts rotating, the driven screws also rotate. Due to the movement of these screws, a minimal vacuum starts producing at the inlet section. This vacuum causes the fluid to enter through the inlet valve. The fluid is trapped between the gap of the “screws” and rotated as the screws rotate. As pressure increases, the fluid is discharged from the outlet valve and transferred to the desired location.
Range
- 3N
- 3M
- 3PD

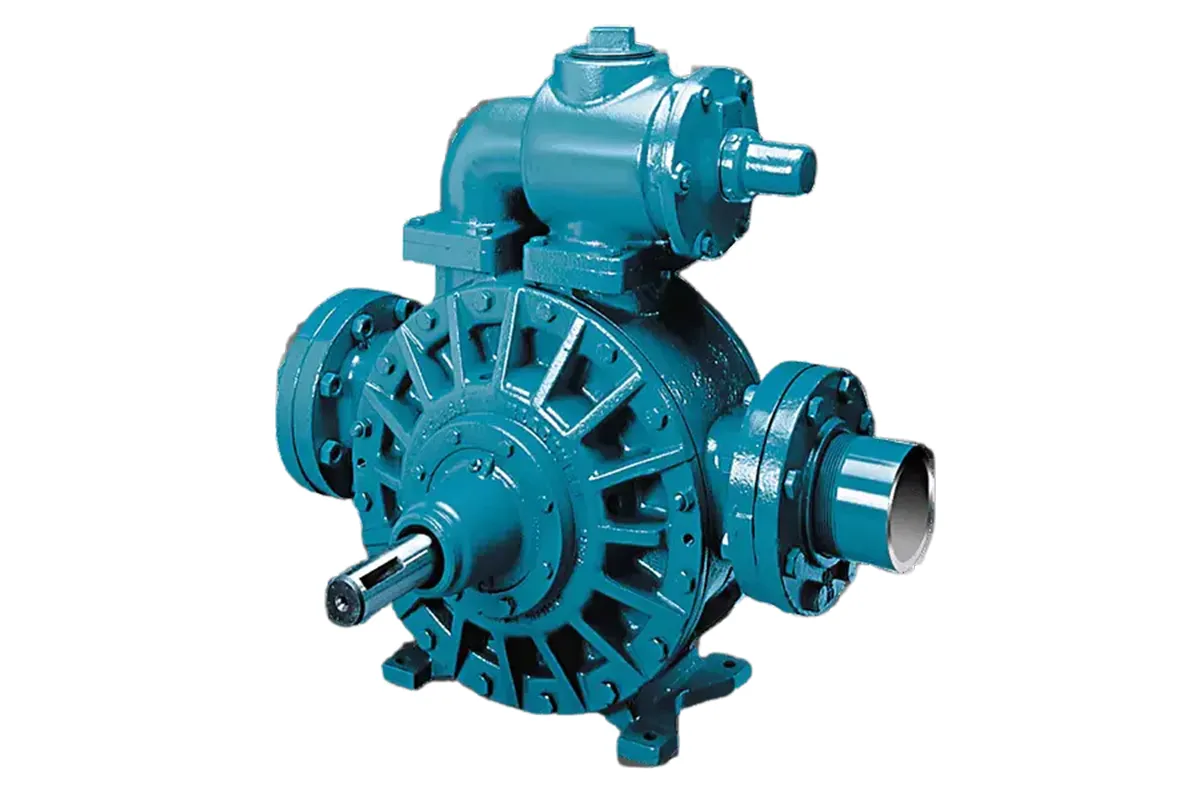

Sliding Vane Pumps
Blackmer’s sliding vane pumps (rotary vane pumps) are designed to handle lubricating fluids and other low-viscosity fluids at low and medium pressures. The unique sliding vane technology allows self-adjustment to mitigate wear while maintaining flow rates.
Blackmer sliding vane pumps are known for their outstanding self-priming and dry-run capabilities, providing uninterrupted operation and reliable performance.
Features & Benefits
- Unique technology: self-adjusting for wear, self-priming, dry-running
- Ease of maintenance: vanes can be easily replaced without disturbing the system
- Excellent performance: high suction lift exceeding 7.6 meters and line-stripping capabilities to empty tanks and pipes of fluid
- Renewable and repairable: designed to support low maintenance and low life-cycle costs
- Solids handling capabilities: made possible by large displacement and slow internal velocities
- Flexibility: handles thin to thick fluids without heating systems
- Highly efficient: requires less horsepower/electricity than other pumps
Available Options
- Vane material options
- Sealing options
- Elastomer options
- Material options
- Connection options
- Porting options
- Mounting options
- Maintenance kit/spare parts
Key Specifications
- Flow rates up to 2233 L/min
- Differential pressures up to 13.8 bar
- Working pressures up to 24.1 bar
- Viscosities up to 10,500 cP
Applications
- Chemicals
- Petroleum
- Paint and coatings
- Pulp and paper
- Food processing
- Asphalts
- Oils
- Molasses
- Adhesives
Principle of Operation
ML Series SLiding Vane Pumps
Part of Blackmer’s Heavy Duty Line, the ML Series Sliding Vane Pumps are constructed with ductile iron and are ideal for handling everything—from thin non-lubricating solvents to highly viscous liquids or abrasive slurries.
The highly customisable ML Series Pump is the ideal pump solution over a wide range of services: chemicals, petroleum, paint and coatings, pulp and paper, and food processing. Based on the materials being pumped, the ML Series pump can be configured with the right combination of bearing, seal and hub assembly, for a specific application. The removable hub allows for quick access to the bearing and sealing areas for routine inspection without removing the entire pump head.
MLN SERIES
Ductile-iron pumps are ideal for handling thin to highly viscous fluids.
Model MLN Sliding Vane Pumps, part of Blackmer’s Heavy Duty Line, are ideal for handling thin to highly viscous fluids such as oils, asphalts, molasses and adhesives. These positive displacement rotary pumps are constructed with ductile iron and can handle everything—from thin non-lubricating solvents to highly viscous liquids or abrasive slurries. The MLN features internal self-lubricating carbon sleeve bearings and PTFE-impregnated shaft packing. Options include Blackmer® or commercial single or double mechanical seals.
MLX SERIES
Ductile-iron pumps are designed for handling all types of liquids.
Model MLX Sliding Vane Pumps, part of Blackmer’s Heavy Duty Line, are designed for handling all types of liquids—from light non-lubricating to viscous abrasive slurries and waste oils. The MLX pump features internal mechanical seals with external ball bearings. The hub assembly in this model features external grease-lubricated spherical roller bearings and can be fitted with a wide selection of Blackmer mechanical seals. Options include hardened or wear-resistant internal components.
NP Series Sliding Vane Pumps
The NP Series is part of Blackmer’s iron line of sliding vane pumps. They are designed for maximum versatility in handling clean, non-corrosive liquids in high-temperature, high-pressure, high-viscosity applications.
The NP pumps’ unique sliding vane rotor design provides sustained, high-level performance over a wide viscosity range. Their slow operating speeds and non-pulsating flow minimises shear and agitation of the fluid. Equipped with self-lubricating internal sleeve bearings, Blackmer NP pumps also offer maintenance-free performance.
Features & Benefits
- Ductile-iron construction with metallised carbon sleeve bearings and non-metallic vanes for longer life
- Shaft stuffing box accommodates most standard aftermarket mechanical seal configurations
- Pump design and operation minimises shear and agitation
- Adjustable relief valve protects pump against excessive pressures
- Excellent self-priming and dry-run capabilities
Sustained performance and trouble-free operation - High suction lift and line-stripping capabilities
- Easy to maintain – low maintenance and life cycle costs
Options
- Optional commercial mechanical seal with stainless steel, carbon, and PTFE construction
- Jacketed pump head option for high-temperature operation
- Vane material options
- Sealing options
- Elastomer options
- Material options
- Connection options
- Porting options
- Mounting/baseplates
- Maintenance kits/spare parts
SNP Series Sliding Vane Pumps
Blackmer® SNP sliding vane pumps are suitable for handling corrosive and caustic fluids, such as acids and liquid foods. The standard SNP pumps are constructed with self-lubricated sleeve bearings and PTFE-impregnated shaft packing.
Blackmer® SNP is all stainless steel built, but the sliding vanes are non-metallic to reduce friction and eliminate galling. All SNP pumps are fitted with a removable drain plug for easy access when draining the pumps for maintenance or servicing.
Features & Benefits
- Ductile-iron construction with metallised carbon sleeve bearings and non-metallic vanes for longer life
- Shaft stuffing box accommodates most standard aftermarket mechanical seal configurations
- Pump design and operation minimises shear and agitation
- Adjustable relief valve protects pump against excessive pressures
- Excellent self-priming and dry-run capabilities
- Sustained performance and trouble-free operation
- High suction lift and line-stripping capabilities
- Easy to maintain – low maintenance and life cycle costs
Options
- Optional commercial mechanical seal with stainless steel, carbon, and PTFE construction
- Optional Triple-Lip
- Cartridge Seal available
- Jacketed pump head option for high-temperature operation
- Vane material options
- Sealing options
- Elastomer options
- Material options
- Connection options
- Porting options
- Mounting/baseplates
- Maintenance kits/spare parts
STX Series Sliding Vane Pumps
The stainless steel Blackmer® STX sliding vane pumps are designed for the fast loading and unloading of corrosive and non-corrosive fluids. They can offload a 22,700-liter tanker for as fast as 24 minutes.
The STX pumps are self-priming and easy to maintain, with the sliding vanes as the only wear-prone parts. The non-metallic vanes are also easy to replace using only ordinary hand tools. Other notable features of the STX sliding vane pumps include run-dry capability, adjustable relief valves, weld flanges, and versatile mounting brackets.
Features & Benefits
- 316 stainless steel with external ball bearing for longer life with corrosive products
- Pump design and operation minimises shear and agitation
- Adjustable relief valve protects the pump against excessive pressures
- Excellent self-priming and dry-run capabilities
- Sustained performance and trouble-free operation
- High suction lift and line-stripping capabilities
- Easy to maintain – low maintenance and life cycle costs
Options
- Vane material options
- Sealing options
- Elastomer options
- Material options
- Connection options
- Porting options
- Mounting/baseplates
- Maintenance kits/spare parts
TX Series Sliding Vane Pumps
Blackmer® TX Sliding Vane Pumps, part of the Iron Line, are durable tanker truck unloading pumps for fast and quiet operation.
These tanker truck pumps are designed to transport petrochemicals, gasoline, biofuels and solvents and for fleet and aviation refuelling. The unique sliding vane technology provides sustained performance and trouble-free operation.
TXH Sliding Vane Pumps
Blackmer TXH sliding vane truck pumps are designed for handling a wide range of clean, non-abrasive and non-corrosive fluids compatible with cast iron.
TXV Sliding Vane Pumps
Blackmer TXV cast iron sliding vane pumps are designed for the high-temperature transfer of thick, viscous fluids, including asphalts. They deliver higher flow rates per revolution than other ported gear pumps. Their slower operating speeds mean longer service life and reduced maintenance requirements. The TXV Series comes standard with bronze vanes and are available in 2.5- and 3-in port sizes.
TXD1220 Sliding Vane Pumps
Blackmer TXD1120 cast iron sliding vane pumps boast speeds of up to 1,200 RPM, providing fast transfer of fluids and quiet operation. These high-speed pumps are also durable, reliable, safe, and efficient.
TXD Sliding Vane Pumps
Blackmer TXD Series comprises ductile iron and cast iron sliding vane pump models. These pumps are equipped with FKM O-rings and Blackmer mechanical seals that are compatible with all biodiesel and ethanol blends. The TX/TXD/TXDI models include corrosion-resistant relief valve, pneumatic relief valves and Buna or PTFE elastomers and seals.
X Series Sliding Vane Pumps
Part of the Iron Line, the Blackmer® X Series Sliding Vane Pumps are used for general transfer duty and are available in port sizes from 1 to 4 inches, flows from 3 to 520 gpm, temperatures to 300ºF, and relief valve pressures up to 125 psi.
The X Series pumps are self-priming, and the self-adjusting vanes help maintain this capability. These vane pumps handle clean, non-corrosive industrial liquids and petroleum products, including many types of oil, solvents and thinners.
Blackmer X Series 2-4 Sliding Vane Pumps
X model positive displacement rotary pumps, part of the Iron Line of sliding vane pumps, utilize a unique sliding vane design to offer the best-combined characteristics of sustained high-level performance, energy efficiency, trouble-free operation and low maintenance cost. Also, these pumps’ high suction lift capability makes them especially suitable for pumping from underground tanks, bulk plant service and aircraft refuelling.
Blackmer X1 Series Sliding Vane Pumps
The X1 Series, part of the Iron Line of sliding vane pumps, consists of thermal shock-resistant ductile iron construction with external ball bearings isolated from the pumpage by mechanical seals, designed to couple directly to standard electric motors. This pump’s design meets tight installation requirements.
XL Series Sliding Vane Pumps
Designed for use in refineries, lube oil plants, and general industry for processing, filling and transfer applications, the shock-resistant, ductile iron XL Sliding Vane Pumps are available in five sizes ranging from 1-1/4 to 4-in.
All models are fitted with replaceable vanes, liners and end discs that allow easy rebuilding of the vane pump to like new condition, without removing the pump from the piping. These vane pumps are built to handle a wide variety of corrosive or caustic fluids.
Features & Benefits
- Ductile-iron construction with internal relief valve
- Blackmer mechanical seal and ball-bearing construction provide maximum reliability
- Symmetrical bearing support assures even loading and wear for long life
- Adjustable relief valve protects the pump against excessive pressures
- Excellent self-priming and dry-run capabilities
- Sustained performance and trouble-free operation
- High suction lift and line-stripping capabilities
- Easy to maintain – low maintenance and life cycle costs
Options
- Vane material options
- Sealing options
- Elastomer options
- Material options
- Connection options
- Porting options
- Mounting/baseplates
- Maintenance kits/spare parts
