Almatec
The name Almatec is synonymous with premier air operated double diaphragm pump or AODD. It falls under the wing of PSG, a Dover company. Although it’s relatively young compared to its competitors, the company has managed to a competitive brand and now has a strong presence in various industries across the globe.
The company’s pump range boasts solid design, superior quality, best-in-class plastic and metal materials, high-precision air control system, and unmatched German manufacturing technology.
Almatec's Chemicor

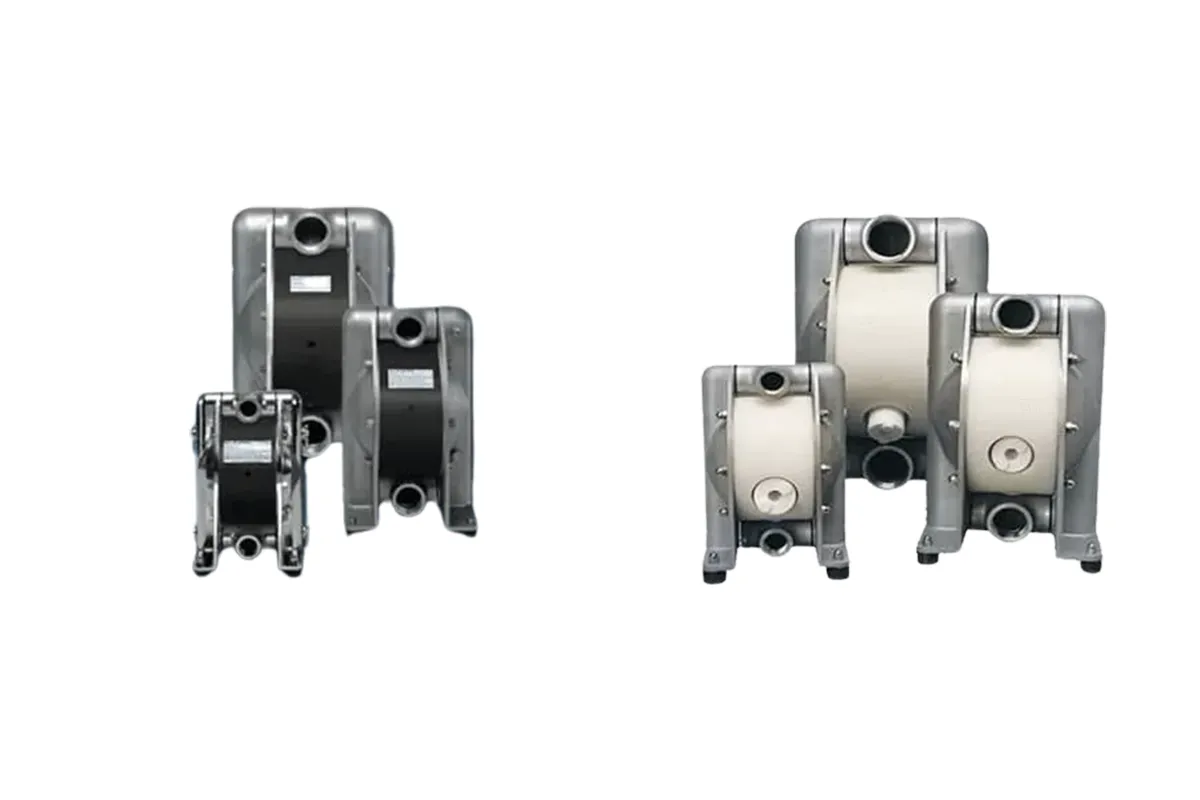

Almatec’s Chemicor features metal air-operated double diaphragm pumps designed for a range of fluids, viscosities, and applications. In creating the Chemicor, Almatec mainly focused on the form of the product chambers, resulting in soft contours, smooth flow channels, and no dead spaces.
These aodd pumps incorporate various metallic materials to suit specific application requirements and ensure that all units are corrosion resistant. Models with a centre block made of PE conductive meet the ATEX requirements of the directive 94/9/EG.
Features & Benefits
- Air-operated diaphragm pumps in solid design
- Housing made of PE or PTFE, also available in conductive version
- Self-priming, dry run safe, suction lift capabilities
- Maintenance and lubrication-free air control system PERSWING P®
- Unattended operation with long service life
- Easily converted from ball to cylinder check valves
Available Options
- Screw-on or flanged pulsation damper (E Series)
- ATEX models (all series) and FDA-conformity (CMX SERIES)
- Draining system
- Barrier chamber system
- Diaphragm monitoring
- Stroke counter
- Flange connection
- Transport carts
- Spare parts
Key Specifications
- Flows up to 36.34 m3/h
- Air pressure up to 700 kPa (0.7 MPa)
- Solids up to (ball valves) 11 mm
Applications
- Chemical Industry
- Pharmaceuticals
- Cosmetics
- Ceramics
- Surface Treatment
- Emergency Services
- Power Plants
- Refineries
- Mechanical Engineering
- Textile Industry
- Water Processing
- Waste Disposal
- Paper Industry
- Electronics
Principle of Operation
Almatec Pumps use the conventional AODD pump technology and working principle. They move fluid by the alternate and repeated back-and-forth movement (strokes) of two flexible membranes or diaphragms mounted on a common shaft. Although diaphragm pumps can be driven directly, with the shaft connected directly to a motor, AODD pumps use compressed air with a sophisticated distribution system directing the air alternately to two air chambers on the opposite sides of the diaphragms.
AODD pumps are capable of handling abrasive, highly viscous fluids, sludges, slurries, and shear-sensitive fluids. AODD pumps are robust, reliable, easy to maintain, and relatively low cost. They tend to be general workhorse devices and are typically used for transfer applications in a wide variety of industries.

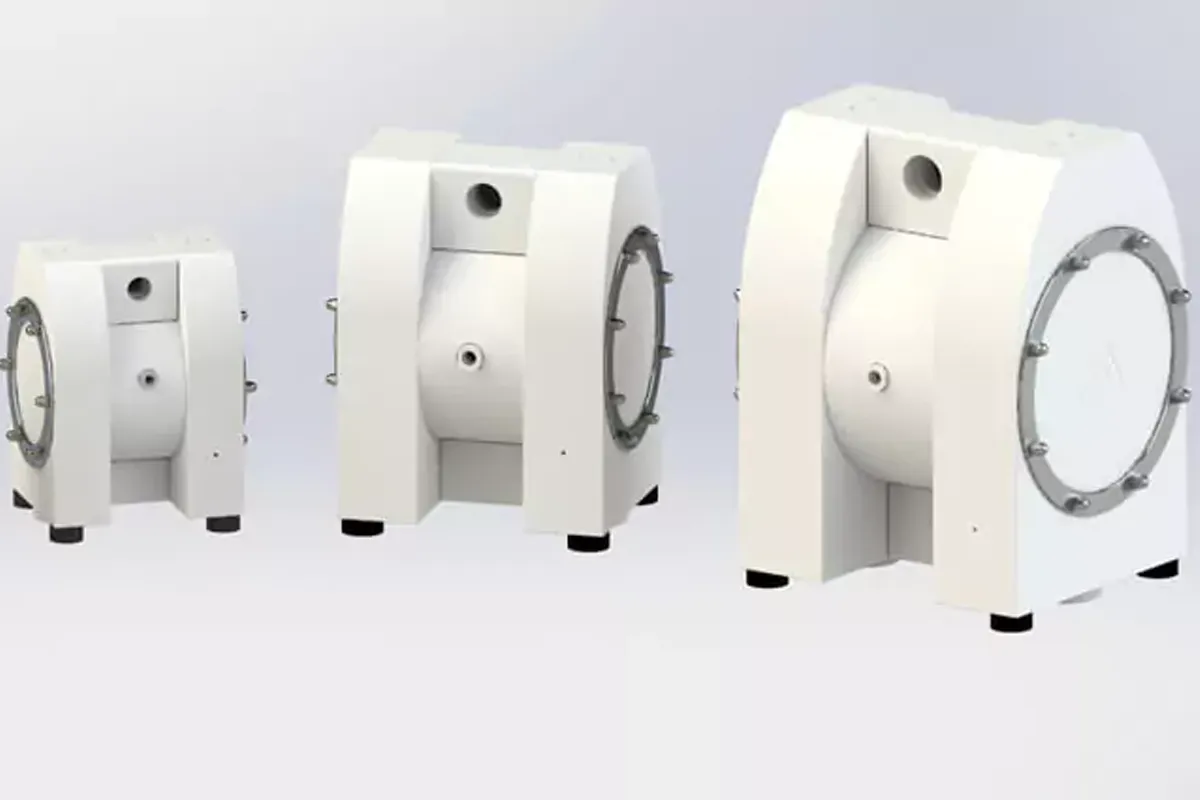

Almatec's Plastic AODD

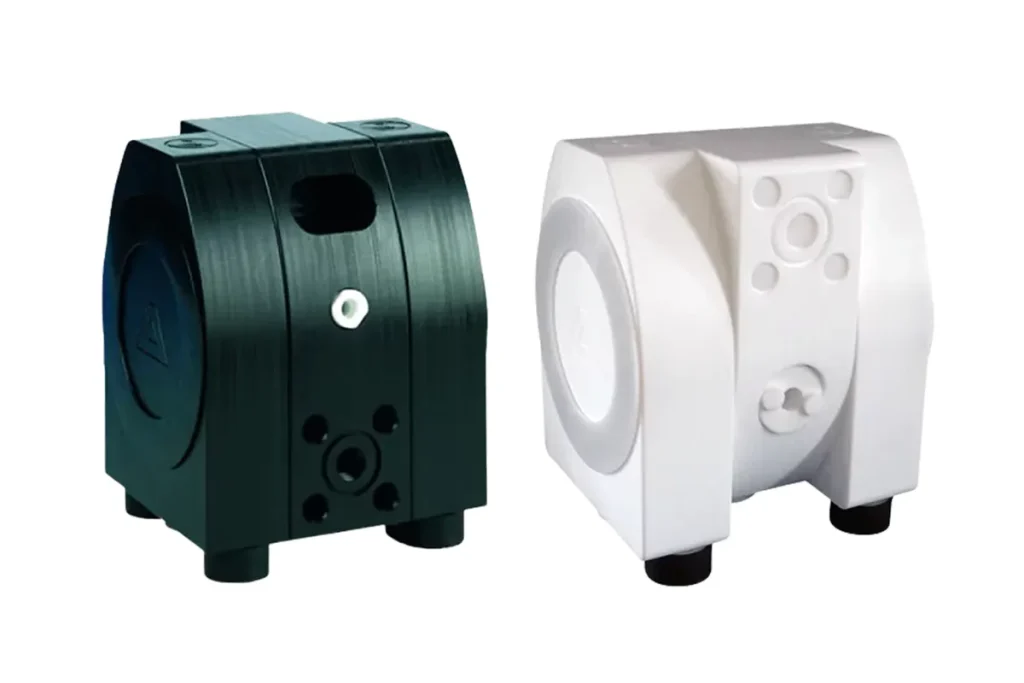

The range of plastic air-operated double-diaphragm (AODD) pumps by Almatec exceeds industry quality requirements by incorporating standard features and complementing them with a solid block design, energy-efficient air control system, cutting-edge diaphragms, and best-in-class materials.
A solid body construction adds to the pumps’ stability and operation’s safety level. Also being mechanically machined using CNC technology, the perfect tolerances between the walls and the parts are achieved. Almatec plastic AODDs are manufactured using PE or PTFE, making them economical to own.
Features & Benefits
- Air-operated diaphragm pumps in solid design
- Housing made of PE or PTFE, also available in conductive version
- Self-priming, dry run safe, suction lift capabilities
- Maintenance and lubrication-free air control system PERSWING P®
- Unattended operation with long service life
- Easily converted from ball to cylinder check valves
Available Options
- Screw-on or flanged pulsation damper (E Series)
- ATEX models (all series) and FDA-conformity (CMX SERIES)
- Draining system
- Barrier chamber system
- Diaphragm monitoring
- Stroke counter
- Flange connection
- Transport carts
- Spare parts
Key Specifications
- Flows up to 37 m3/h
- Air pressure up to 700 kPa (0.7) MPa
- Solids up to (ball valves) 11 mm
Applications
E-SERIES
- Chemical industry
- Pharmaceuticals
- Cosmetics
- Ceramics
- Surface treatment
- Emergency services
- Power plants
- Refineries
- Mechanical engineering
- Textile industry
- Water processing
- Waste disposal
- Paper industry
- Electronics
- Solar industry
C-SERIES
- Sludges
- Acids
- Alkalis
- Solvents
- Slurries
- Emulsions
- Mixtures of liquids and solids
- Resins
- Powders
- Aqueous solutions
- Paints, inks
- Chemical industry
- Ceramics
- Surface treatment
- Mechanical engineering
- Textile industry
- Water processing
- Waste disposal
- Paper industry
- Electroplating
- Refineries
CXM SERIES
- Low to medium-duty applications across industries
- ATEX
- Drum pump applications
Principle of Operation
Almatec pumps follow the conventional working principle of an AODD pump. They move fluid by the alternate and repeated back-and-forth movement (strokes) of two flexible membranes or diaphragms mounted on a common shaft. Although diaphragm pumps can be driven directly, with the shaft connected directly to a motor, AODD pumps use compressed air with a sophisticated distribution system directing the air alternately to two air chambers on the opposite sides of the diaphragms.
AODD pumps are capable of handling abrasive, highly viscous fluids, sludges, slurries, and shear-sensitive fluids. AODD pumps are robust, reliable, easy to maintain, and relatively low cost. They tend to be general workhorse devices and are typically used for transfer applications in a wide variety of industries.

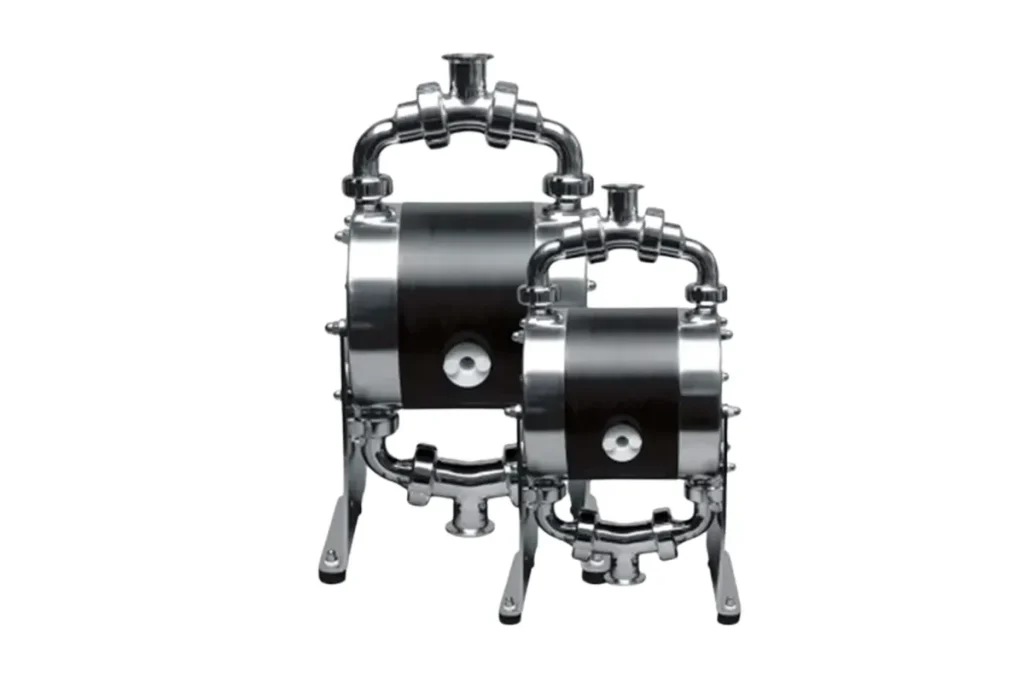

Almatec's Specialty AODD
Almatec’s line of specialty pumps is engineered to meet the specific and strict requirements of special applications, including the high pressure, food and beverage, biopharma, and semiconductor industries. Although with different offerings, the BIOCOR, FUTUR, AHD/AHS, and MM Series are made from carefully selected materials to deliver their special functions while achieving optimal performance and lifespan.
Almatec’s specialty pumps are economical to own, and they all incorporate an optimised diaphragm, compact construction, and simple design.
Features & Benefits
- Self-priming, dry run capable, good suction head
- Maintenance-free PERSWING P® air control system
- AHD/AHS Series is designed to operate safely in high-pressure duties
- MM Series uses food-grade wetted materials and a design for CIP and SIP
- Futur’s housing parts are machined from solid blocks for longevity
- Biocor’s superior containment design prevents leaks and contamination
Available Options
- Pulsation dampener for most models
- Draining system
- Barrier chamber system
- Diaphragm monitoring
- Stroke counter
- Flange connection
- Transport carts
- Spare parts
Key Specifications
- Capacity up to 20 m3/h
- Air pressure up to 1.5 MPa
- Suction lift up to 9 m
Applications
BIOCOR
Sterile applications in:
- Pharmaceutical
- Biotechnical
- Food
- CIP
- SIP
FUTUR
- Acids, caustics, high-purity chemicals
- Wet Benches, loops
- Supply, disposal, filtration, circulation
AHD/AHS
High-pressure applications across industries:
- Polymerization
- Catalytic reactions
- Separations
- Oil and gas recovery
- Food processing
- Biocatalysis
MM
- Transfer and filling of beverages, sauces, toppings etc.
- Dosing of food and beverage ingredients
- Processing of meat, pastry and dough, smoothies, fruit pulp, candies
- Transfer and filling of cosmetics
Principle of Operation
Almatec Pumps use the conventional AODD pump technology and working principle. They move fluid by the alternate and repeated back-and-forth movement (strokes) of two flexible membranes or diaphragms mounted on a common shaft. Although diaphragm pumps can be driven directly, with the shaft connected directly to a motor, AODD pumps use compressed air with a sophisticated distribution system directing the air alternately to two air chambers on the opposite sides of the diaphragms.
AODD pumps are capable of handling abrasive, highly viscous fluids, sludges, slurries, and shear-sensitive fluids. AODD pumps are robust, reliable, easy to maintain, and relatively low cost. They tend to be general workhorse devices and are typically used for transfer applications in a wide variety of industries.
